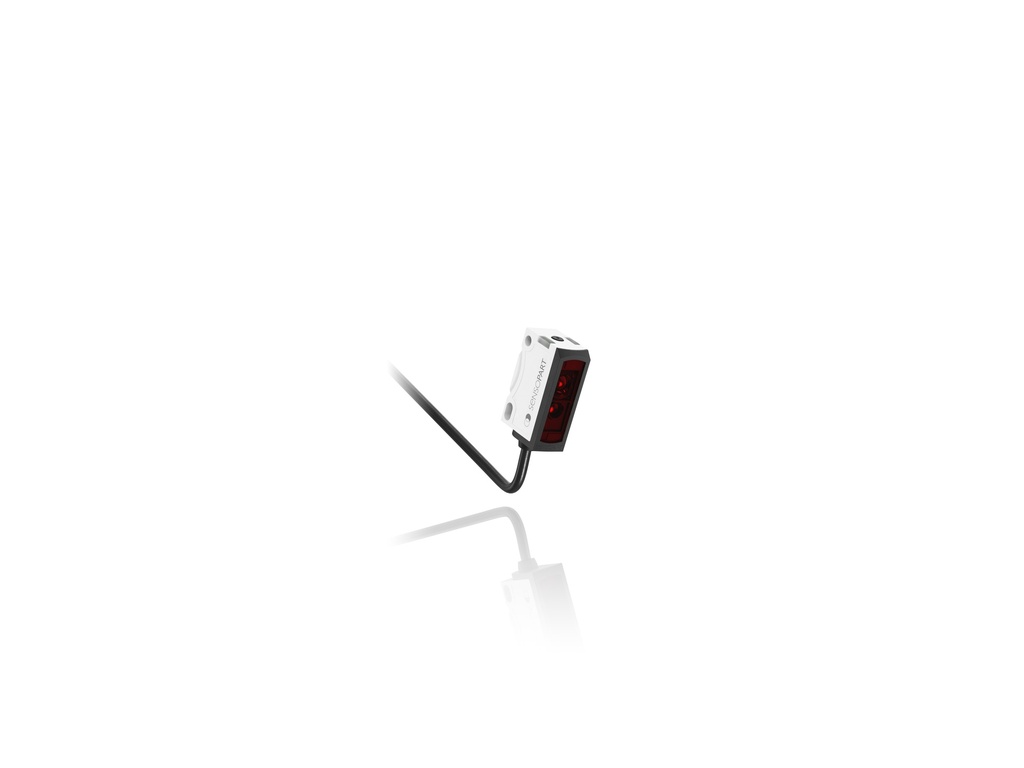

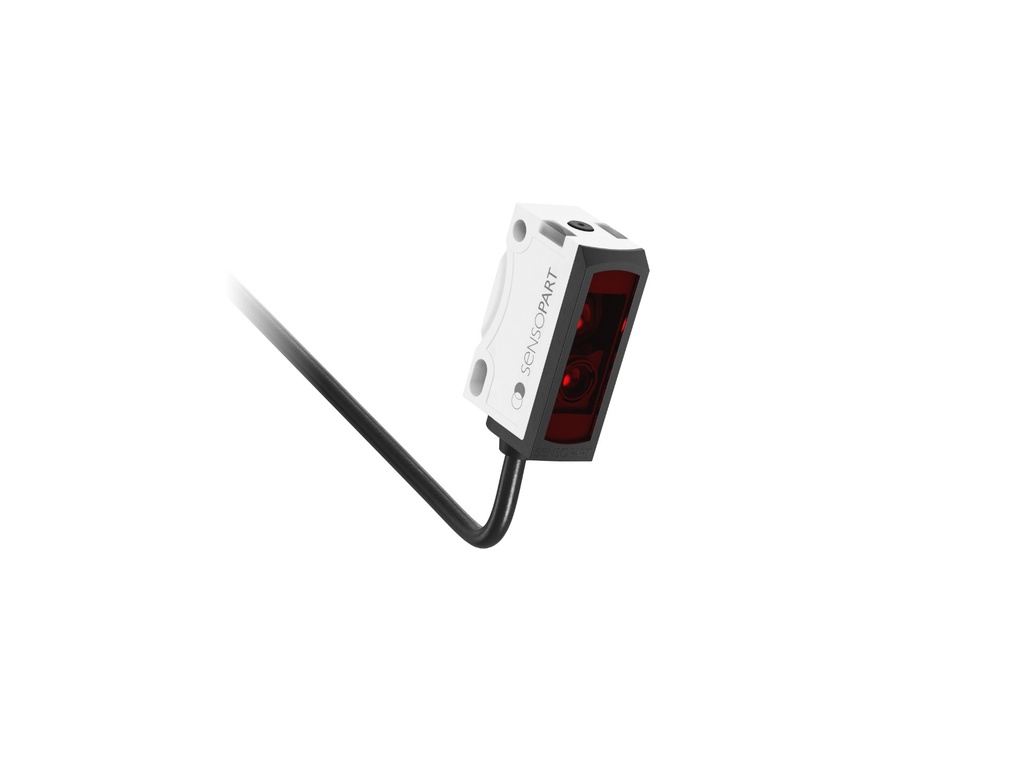

SENSOPART FR 25-RGO2-PS-K4

SensoPart FR 25-RGO2-PS-K4 — Retro-reflective light barrier with autocollimation, 2m, red light, LED, PNP, Teach-in, Cabel 2m 4-wire, IP 67 & IP69K For this. Genuine product, supplied and supported by ZTEC.

183.98 € 183.98 €
kr 1,375.34
(Tax excluded)
Contact Us
Documents
SENSOPART FR 25-RGO2-PS-K4 - Brochure 2.pdf SENSOPART FR 25-RGO2-PS-K4 - Brochure.pdf SENSOPART FR 25-RGO2-PS-K4 - CAD.zip SENSOPART FR 25-RGO2-PS-K4 - Datasheet.pdf SENSOPART FR 25-RGO2-PS-K4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FR 25-RGO2-PS-K4

A retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting

Order code
FR 25-RGO2-PS-K4
Order number
606-11034
SensoPart FR 25-RGO2-PS-K4
Working distance
0
Output
PNP
Connection
Cable, 4-wire, 2 m
Protection
IP69K

SensoPart FR 25-RGO2-PS-K4 is a retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Autocollimation principle: reliable and precise detection from a range of 0 mm
✓Precise detection, even through narrow openings and drilled holes
✓Compact miniature housings for installation in the smallest of spaces
✓Simple operation via electronic Teach-in button or control input
✓Robust glass-fibre-reinforced plastic housings

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]2000
Light sourceLED, red
Electrical data
Switching outputPNP
Velocity [Hz]1000
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP69K

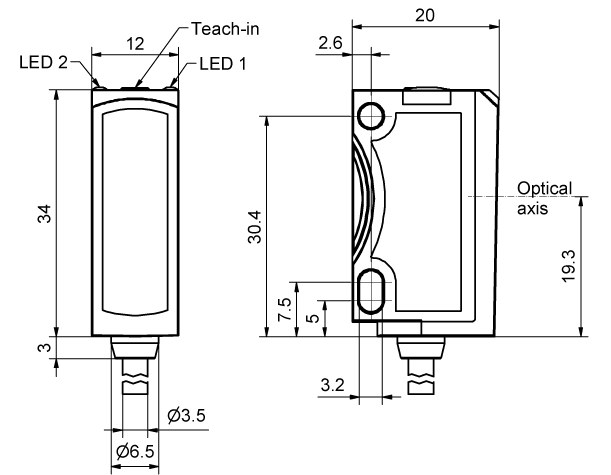

SeriesF25 (34 x 20 x 12 mm)
Temperature range [°C]-20 ... +60
Connection typeCable, 4-wire, 2 m
Additional specifications
Sensor principlePhotoelectric retro-reflective sensor
