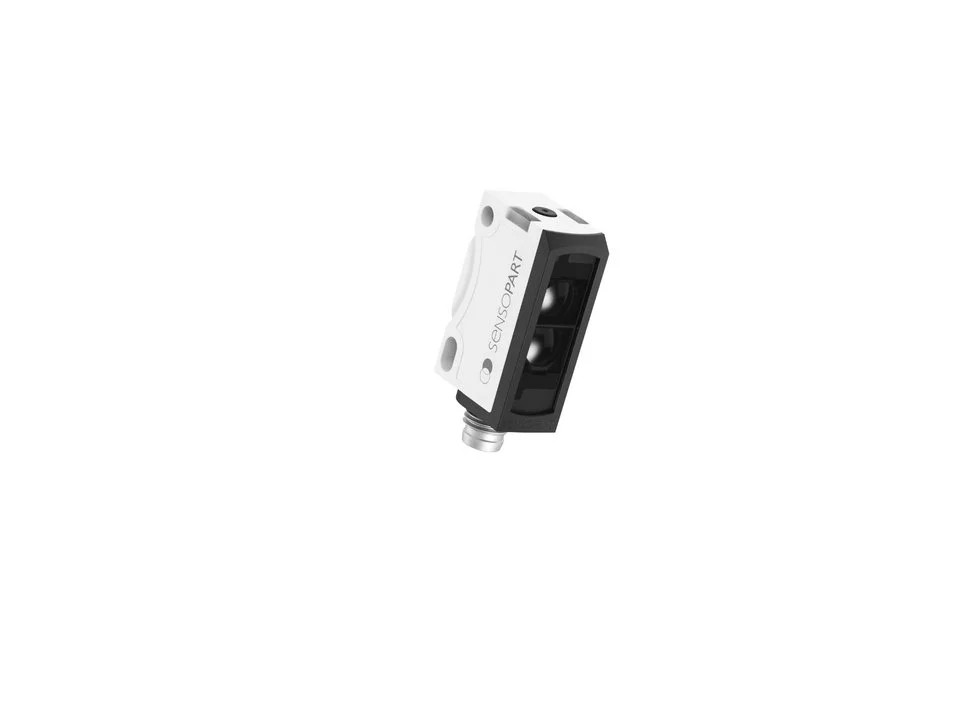

SENSOPART FT 25-W1-GS-M4M
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 25-W1-GS-M4M

A colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control

Order code
FT 25-W1-GS-M4M
Order number
607-21013
SensoPart FT 25-W1-GS-M4M
Working distance
9,5
Output
Push-pull
Connection
Metal plug M8, 4-pin
Protection
IP 67, IP69

SensoPart FT 25-W1-GS-M4M is a colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Precise detection of the slightest contrast differences
✓Very robust operation despite fluttering and glossy objects
✓Simple alignment through very precise and easily visible light spot
✓Housings that are many times smaller than standard housings – and offer better performance
✓Very high positioning accuracy with 10 µs scanning

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principleContrast sensor
Spot size [mm]1 x 4
SeriesF25 (34 x 20 x 12 mm)
Working distance min. [mm]9,5
Working distance max. [mm]14,5
Light sourceLED, white
Switching outputPush-pull
Temperature range [°C]-20 ... +55
Connection typeMetal plug M8, 4-pin
Enclosure ratingIP 67, IP69

Accessories and compatible hardware

Complete your solution — compatible mountings, cables and optics.

Recommended accessories

MA 18
Accessory
MA 18
View product →
MA 30
Accessory
MA 30
View product →
MC 08
Accessory
MC 08
View product →
MC 30
Accessory
MC 30
View product →
