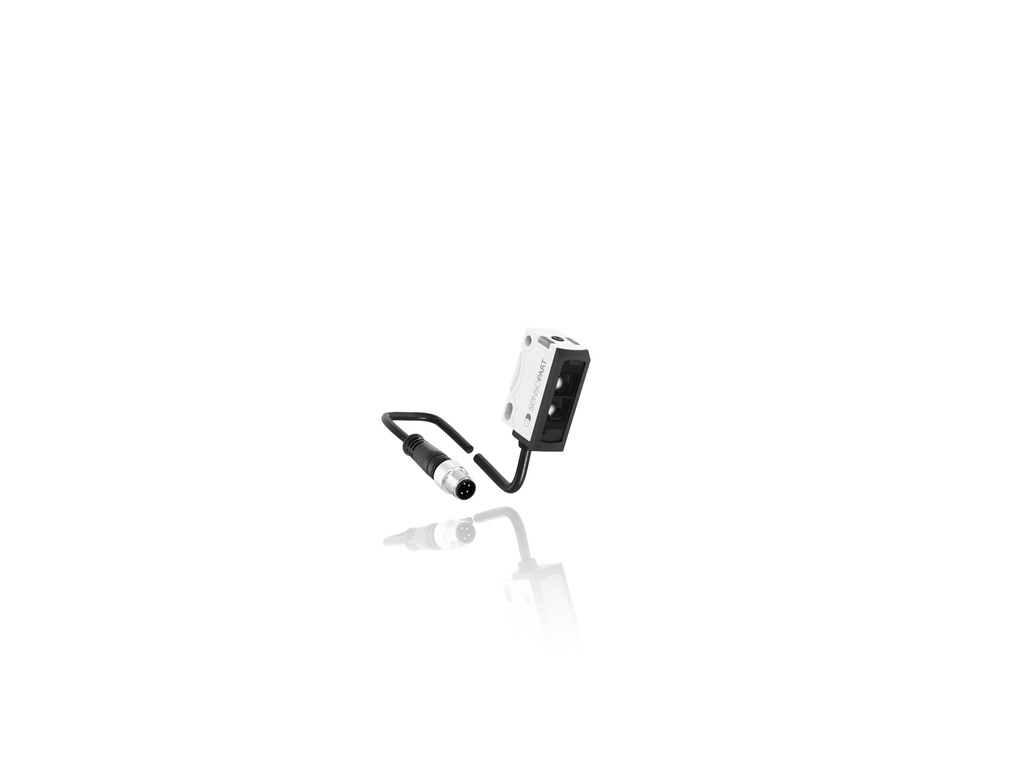

SENSOPART FT 25-RGB2-GS-KL4

SensoPart FT 25-RGB2-GS-KL4 — RGB contrast sensor, 12 +/- 3mm, 10 kHz, Push Pull, teach in, pigtail 150mm with plug M12 4-pins, IP67 & IP69K For this prodcut. Genuine product,.

323.48 € 323.48 €
kr 2,418.07
(Tax excluded)
Contact Us
Documents
SENSOPART FT 25-RGB2-GS-KL4 - Brochure 2.pdf SENSOPART FT 25-RGB2-GS-KL4 - Brochure 3.pdf SENSOPART FT 25-RGB2-GS-KL4 - Brochure.pdf SENSOPART FT 25-RGB2-GS-KL4 - CAD.zip SENSOPART FT 25-RGB2-GS-KL4 - Datasheet.pdf SENSOPART FT 25-RGB2-GS-KL4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

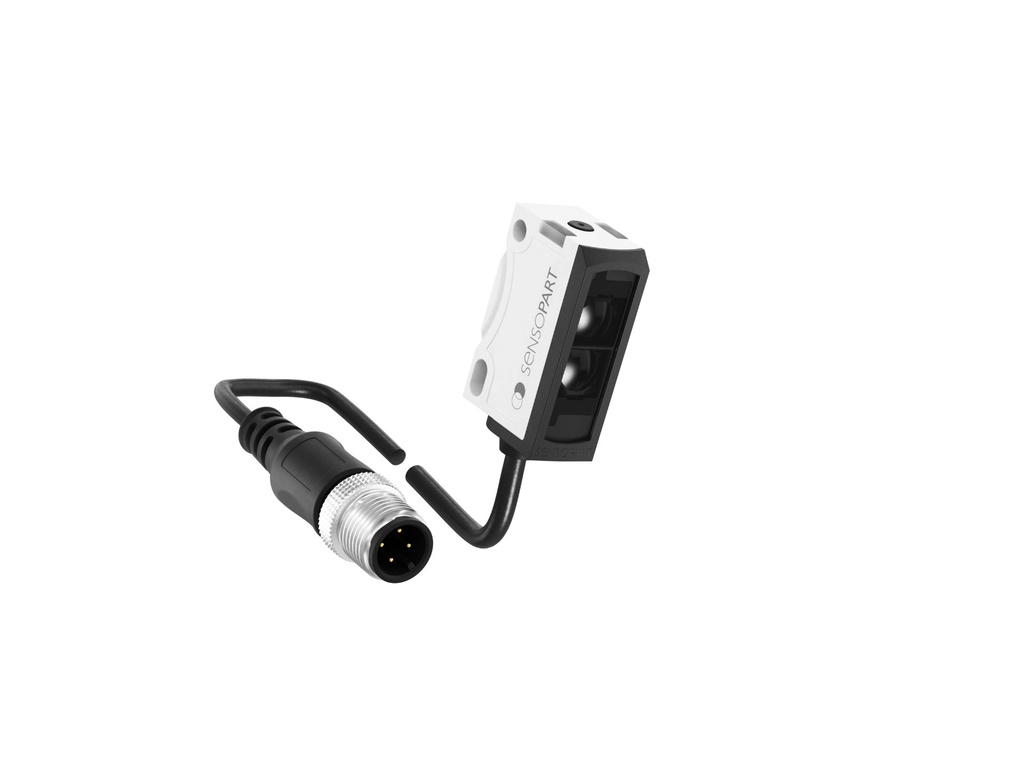

SensoPart FT 25-RGB2-GS-KL4

A colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control

Order code
FT 25-RGB2-GS-KL4
Order number
607-21018
SensoPart FT 25-RGB2-GS-KL4
Working distance
9
Output
Push-pull
Connection
Pigtail, plug M12, 4-wire, 150 mm
Protection
IP 67, IP69

SensoPart FT 25-RGB2-GS-KL4 is a colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control.

Key features

✓Precise detection of the slightest of contrast differences through multi-color RGB evaluation
✓Very robust operation despite fluttering and glossy objects
✓Simple alignment thanks to very precise and easily visible light spot
✓Communication via 3-color light spot (simple, comprehensible, clearly defined)
✓Very accurate positioning due to rapid scanning rate of 10 µs

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Spot size [mm]1 x 4
Working distance min. [mm]9
Working distance max. [mm]15
Light sourceLED, RGB
Electrical data
Switching outputPush-pull
Mechanical data
Enclosure ratingIP 67, IP69
Temperature range [°C]-20. +55
Connection typePigtail, plug M12, 4-wire, 150 mm
Additional specifications
Sensor principleContrast sensor
