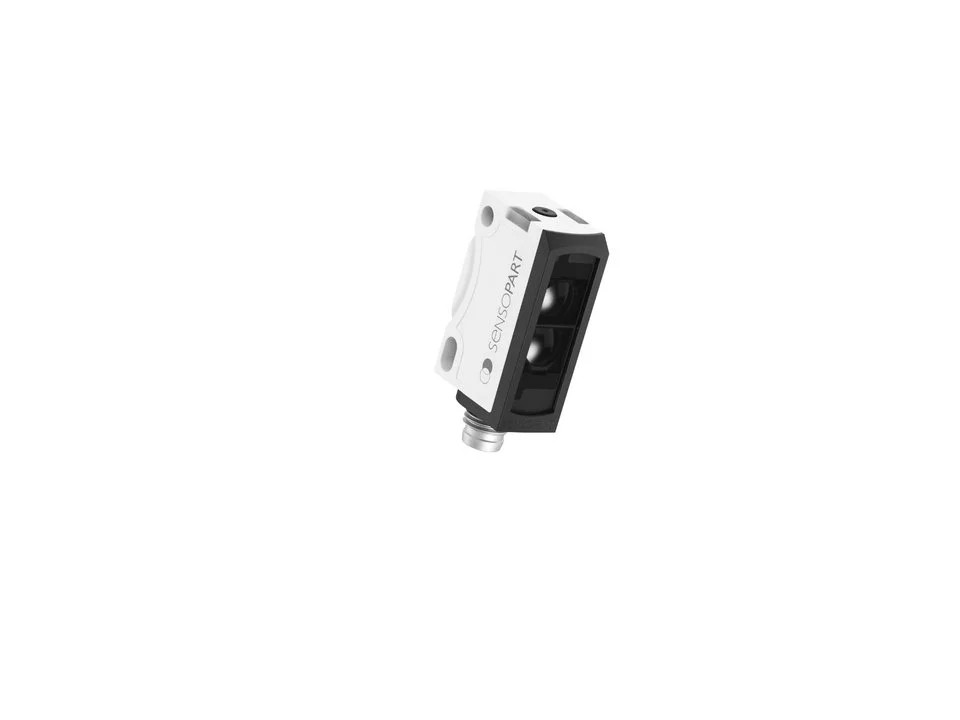

SensoPart FT 25-RGB1-GSL-M4M

A colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control

Order code
FT 25-RGB1-GSL-M4M
Order number
607-21037
SensoPart FT 25-RGB1-GSL-M4M
Working distance
9
Output
Push-pull
Connection
Metal plug M8, 4-pin
Interface
IO-Link

SensoPart FT 25-RGB1-GSL-M4M is a colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Precise detection of the slightest of contrast differences through multi-color RGB evaluation
✓Very robust operation despite fluttering and glossy objects
✓Simple alignment thanks to very precise and easily visible light spot
✓Communication via 3-color light spot (simple, comprehensible, clearly defined)
✓Very accurate positioning due to rapid scanning rate of 10 µs

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principleContrast sensor
Spot size [mm]1 x 4

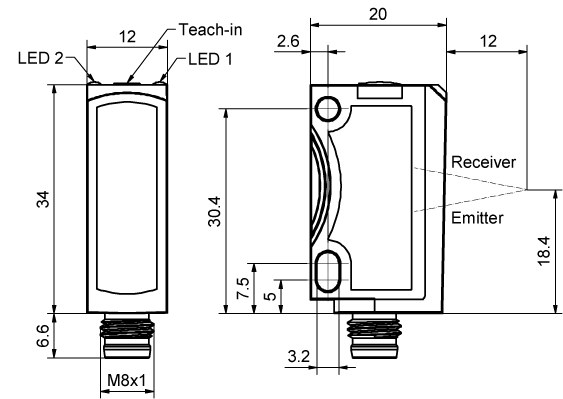

SeriesF25 (34 x 20 x 12 mm)
Working distance min. [mm]9
Working distance max. [mm]15
Velocity [Hz]25000
InterfaceIO-Link
Light sourceLED, RGB
Switching outputPush-pull
Temperature range [°C]-20 ... +55
Connection typeMetal plug M8, 4-pin
Enclosure ratingIP 67, IP69
