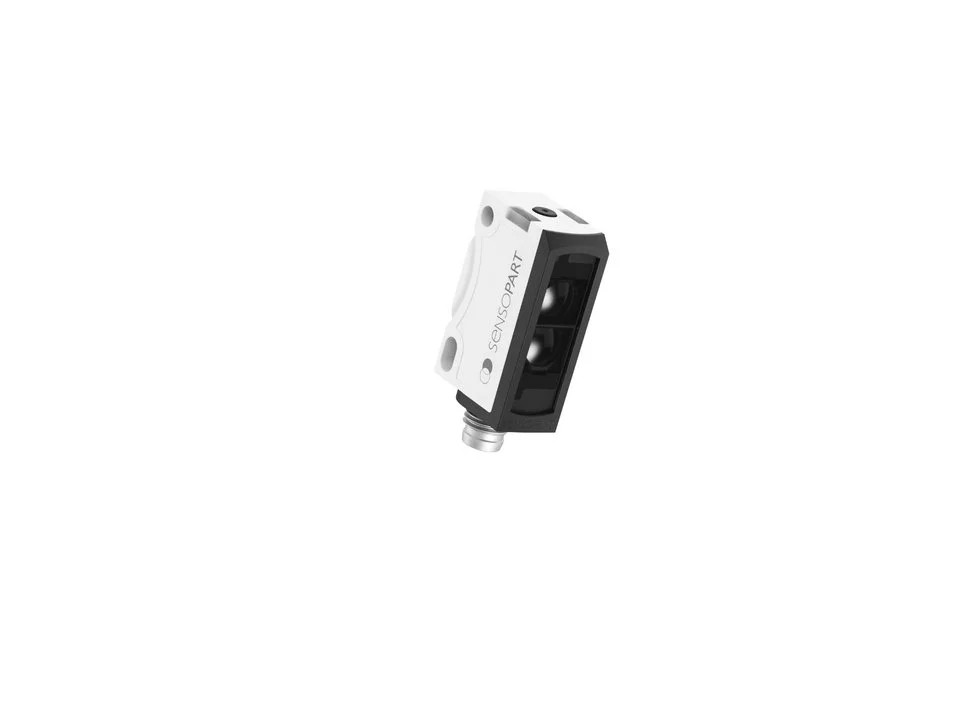

SENSOPART FT 25-C1-GSL-M4M
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 25-C1-GSL-M4M

A colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control

Order code
FT 25-C1-GSL-M4M
Order number
607-21040
SensoPart FT 25-C1-GSL-M4M
Output
Push-pull
Protection
2

SensoPart FT 25-C1-GSL-M4M is a colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Smallest RGB color sensor with high switching frequency ? 10 kHz
✓Precise detection of the slightest of contrast differences
✓Very robust operation despite fluttering and glossy objects
✓Feedback via ?responding light spot? about quality of taught-in color value

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Explanation of scanning distance toleranceTolerance depending on teach-in: fine, medium, coarse; see operating instructions
Light sourceLED
Light colorRed
Light typeGreen
Explanation of switching frequencyf = 1 / (T x Nyq x 2)
Display, LED yellowSwitching output indicator
Display, LED greenOperating voltage indicator
Setting optionsNO/NC via teach-in button and control input, button lock via control input, multiple setting options via IO-Link
Sensitivity settingVia teach-in button, control input and IO-Link
Default settingsNO
Number of savable colors1
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
Explanation of operating voltage UBmax. 10% residual ripple, within UB ~ 50 Hz / 100 Hz
Reverse polarity protectionYes
Short circuit protectionYes
Control input+ UB = Teach-in - UB = Button locked Open = Normal operation
Protection class2
Output functionN.O./N.C.
Switching output QPush-pull
Front panel materialPMMA
Housing materialABS
Explanation of operation at ambient air temperatureUL: -20…+50 °C
Explanation of protection classWith IP67 / IP69 plug connected
Vibration and shock resistanceEN 60947-5-2
Connection nameMetal plug M8x1, 4-pin, IO-Link
