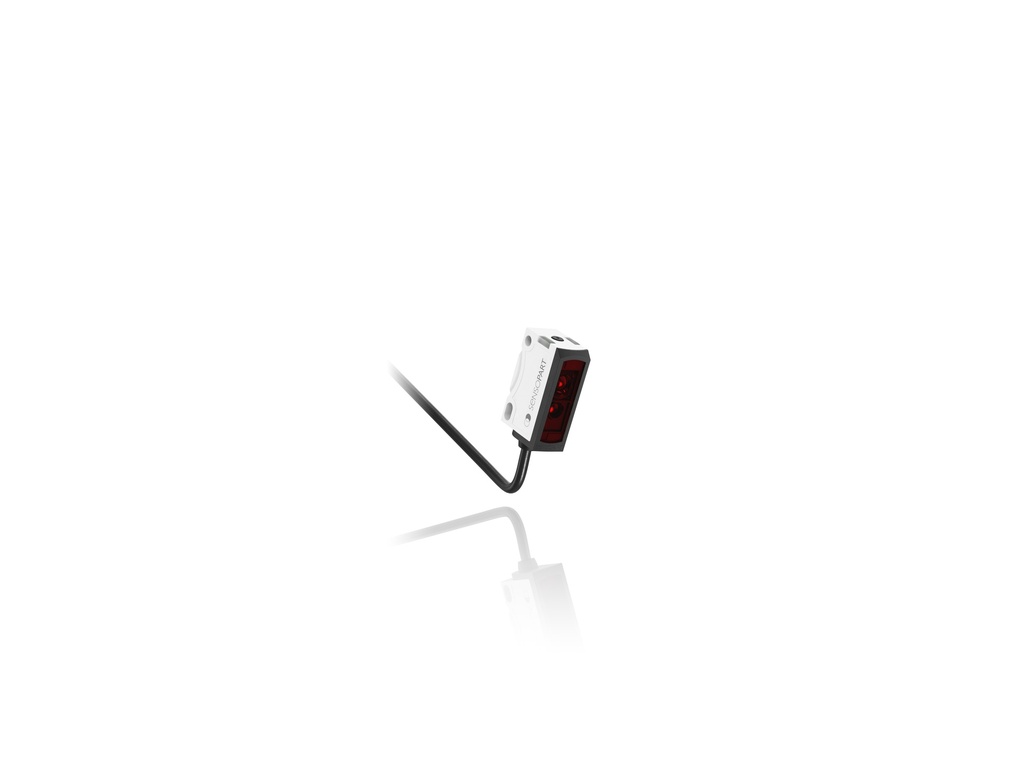

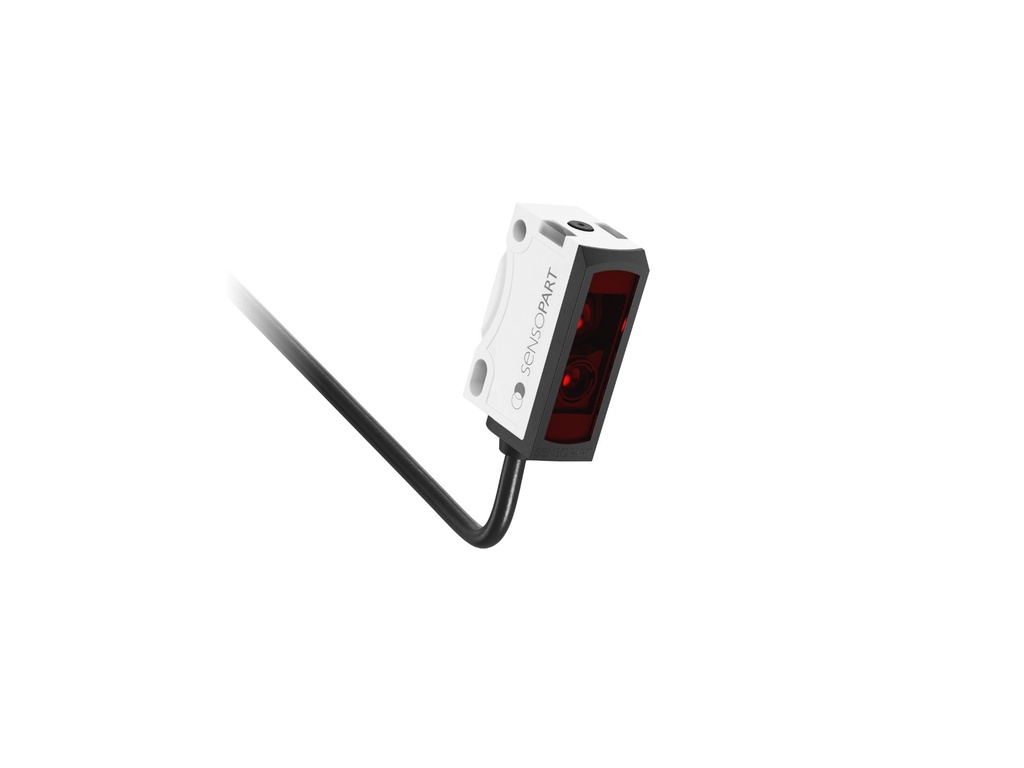

SENSOPART FT 25-RHD-PNSL-K4

SensoPart FT 25-RHD-PNSL-K4 — Photoelectric proximity sensor with background suppression, 400 mm, red light, LED, teach-in, cable 2m 4-wire, IP67 & IP69K, IO. Genuine product, supplied and supported by ZTEC.

184.98 € 184.98 €
kr 1,382.82
(Tax excluded)
Contact Us
Documents
SENSOPART FT 25-RHD-PNSL-K4 - Brochure 2.pdf SENSOPART FT 25-RHD-PNSL-K4 - Brochure.pdf SENSOPART FT 25-RHD-PNSL-K4 - CAD.zip SENSOPART FT 25-RHD-PNSL-K4 - Datasheet 2.pdf SENSOPART FT 25-RHD-PNSL-K4 - Datasheet.pdf SENSOPART FT 25-RHD-PNSL-K4 - IODD.pdf SENSOPART FT 25-RHD-PNSL-K4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 25-RHD-PNSL-K4

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 25-RHD-PNSL-K4
Order number
608-11043
SensoPart FT 25-RHD-PNSL-K4
Working distance
3
Output
PNP
Connection
Metal plug M8, 3-pin
Interface
IO-Link

SensoPart FT 25-RHD-PNSL-K4 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Precisely adjustable background suppression
✓Long scanning distance of 400 mm with small and compact housings
✓Reliable operation even with highly reflective backgrounds, thanks to SensoPart ASIC technology
✓Simple alignment thanks to easily visible light spot
✓Robust glass-fibre-reinforced plastic housings
✓Resilient laser printing
✓IO-Link

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression

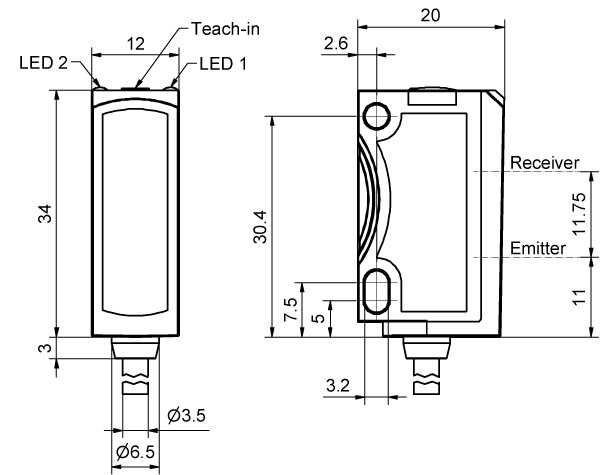

SeriesF25 (34 x 20 x 12 mm)
Working distance min. [mm]3
Working distance max. [mm]400
Velocity [Hz]1000
InterfaceIO-Link
AdjustmentTeach-in
Light sourceLED, red
Switching outputPNP
Temperature range [°C]-20 ... +60
Connection typeMetal plug M8, 3-pin
Enclosure ratingIP69
