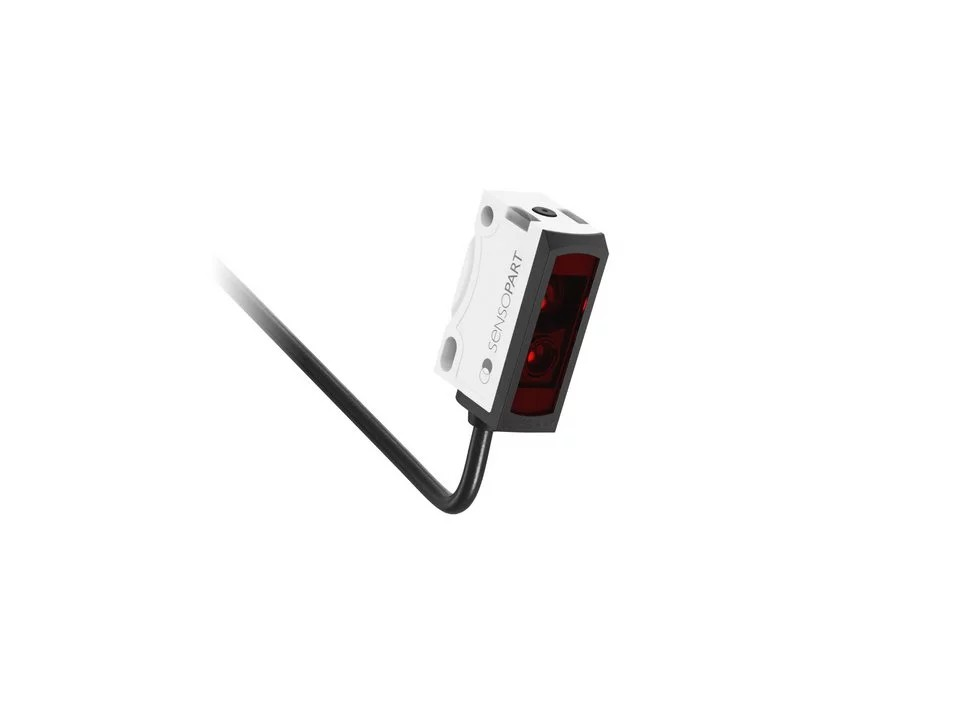

SENSOPART FT 25-RL-NS-K4

SensoPart FT 25-RL-NS-K4 — For this prodcut a new version is available: 609-21019 FT 25-RL-PNS-K4 That offers additional functionality via IO-Link. More p. Genuine product, supplied and supported by ZTEC.

262.47 € 262.47 €
kr 1,962.11
(Tax excluded)
Contact Us
Documents
SENSOPART FT 25-RL-NS-K4 - Brochure 2.pdf SENSOPART FT 25-RL-NS-K4 - Brochure.pdf SENSOPART FT 25-RL-NS-K4 - CAD.zip SENSOPART FT 25-RL-NS-K4 - Datasheet.pdf SENSOPART FT 25-RL-NS-K4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 25-RL-NS-K4

A diffuse photoelectric proximity sensor that detects objects directly by the light they reflect — compact one-sided detection

Order code
FT 25-RL-NS-K4
Order number
609-21008
SensoPart FT 25-RL-NS-K4
Working distance
1
Output
PNP
Connection
Metal plug M8, 4-pin
Protection
IP69K

SensoPart FT 25-RL-NS-K4 is a diffuse photoelectric proximity sensor that detects objects directly by the light they reflect — compact one-sided detection, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Differentiates between even the slightest of grey value differences
✓Sensor settings via teach-in and control input
✓Durable laser printing
✓Very small, easily visible laser light spot
✓Wide range of variants

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
AdjustmentTeach-in
Working distance min. [mm]1
Working distance max. [mm]250
Light sourceLaser, red (Class 1)
Electrical data
Switching outputPNP
Velocity [Hz]4000
Mechanical data
Enclosure ratingIP69K
SeriesF25 (34 x 20 x 12 mm)
Temperature range [°C]-20 ... +60
Connection typeMetal plug M8, 4-pin
Additional specifications
Sensor principlePhotoelectric diffuse sensor
