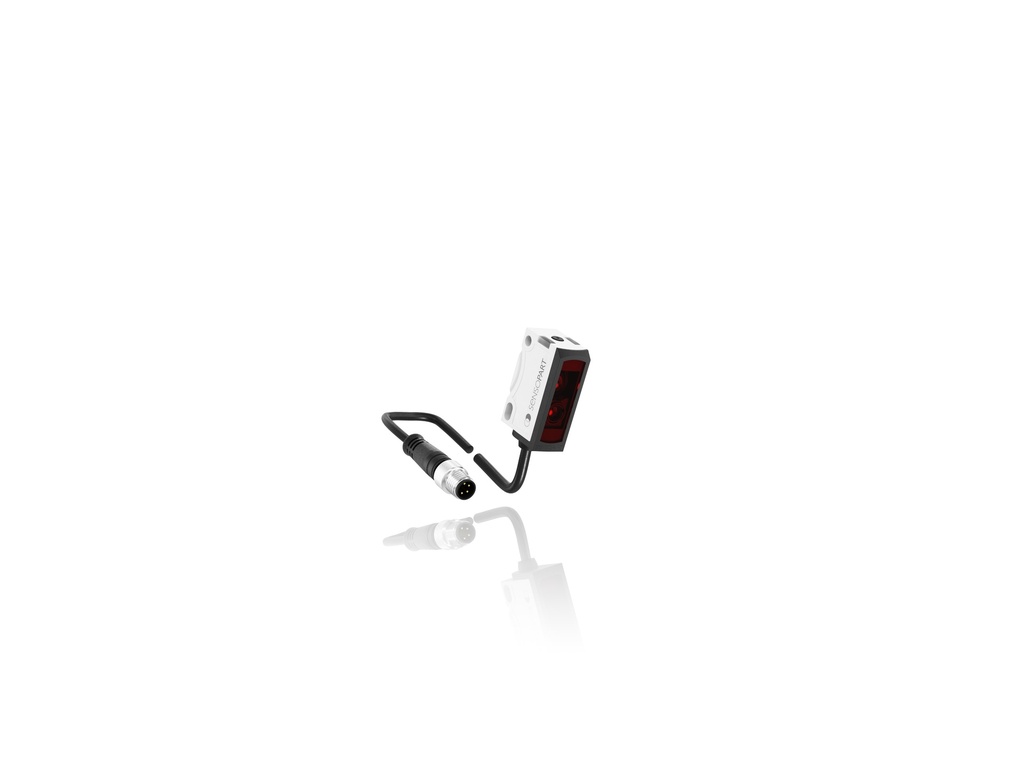

SENSOPART FR 25-RL-NS-KM4

SensoPart FR 25-RL-NS-KM4 — For this prodcut a new version is available: 609-31016 FR 25-RL-PNSL-KM4 That offers additional functionality via IO-Link. More. Genuine product, supplied and supported by ZTEC.

534.77 € 534.77 €
kr 3,997.17
(Tax excluded)
Contact Us
Documents
SENSOPART FR 25-RL-NS-KM4 - Brochure 2.pdf SENSOPART FR 25-RL-NS-KM4 - Brochure.pdf SENSOPART FR 25-RL-NS-KM4 - CAD.zip SENSOPART FR 25-RL-NS-KM4 - Datasheet.pdf SENSOPART FR 25-RL-NS-KM4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

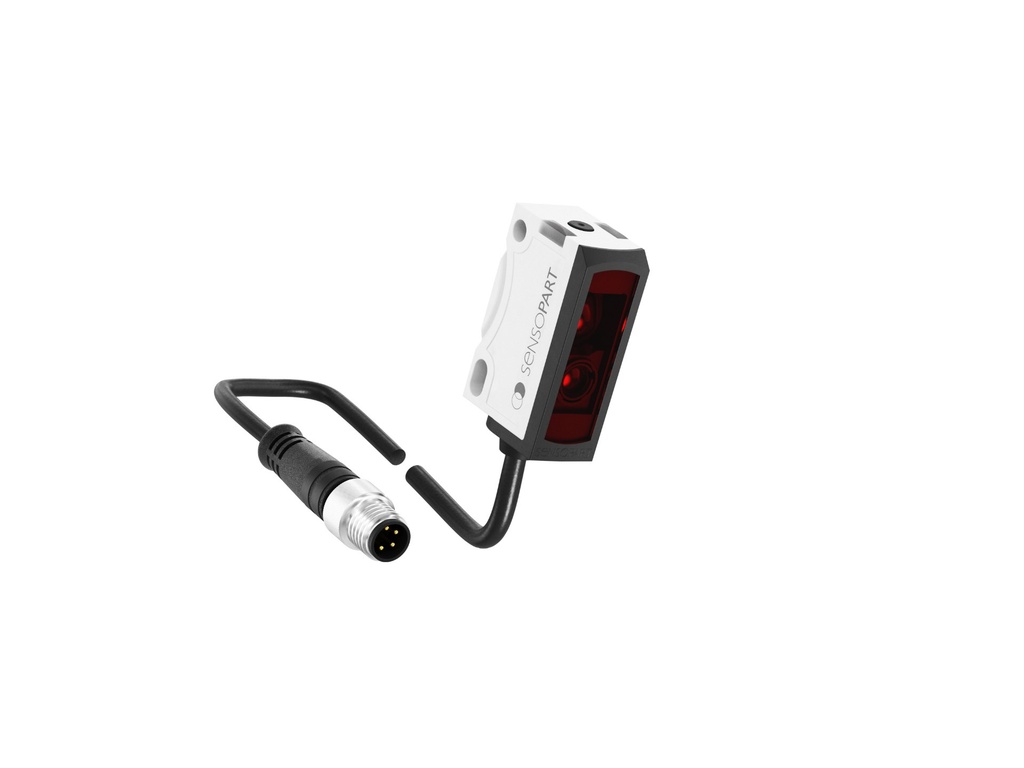

SensoPart FR 25-RL-NS-KM4

A retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting

Order code
FR 25-RL-NS-KM4
Order number
609-21017
SensoPart FR 25-RL-NS-KM4
Working distance
100
Output
PNP
Connection
Metal plug M8, 3-pin
Protection
IP69K

SensoPart FR 25-RL-NS-KM4 is a retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Particularly suitable for short-range applications
✓Suitable for a wide variety of different reflectors
✓Very small, easily visible laser light spot
✓Sensor settings via teach-in and control input
✓Robust glass-fibre-reinforced plastic housings

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]100
Working distance max. [mm]13000
Light sourceLaser, red (Class 1)
Electrical data
Switching outputPNP
Velocity [Hz]4000
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP69K

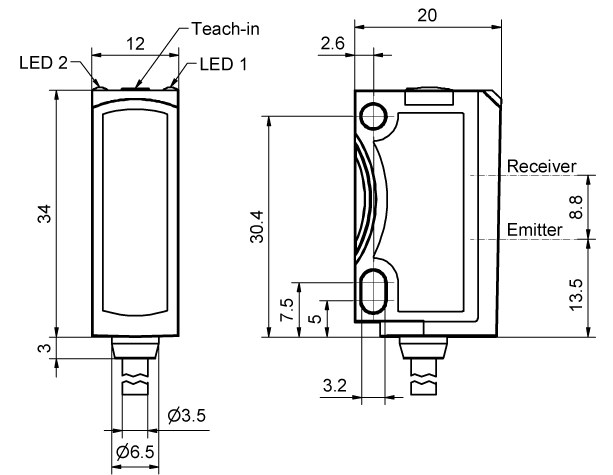

SeriesF25 (34 x 20 x 12 mm)
Temperature range [°C]-20 ... +60
Connection typeMetal plug M8, 3-pin
Additional specifications
Sensor principlePhotoelectric retro-reflective sensor
