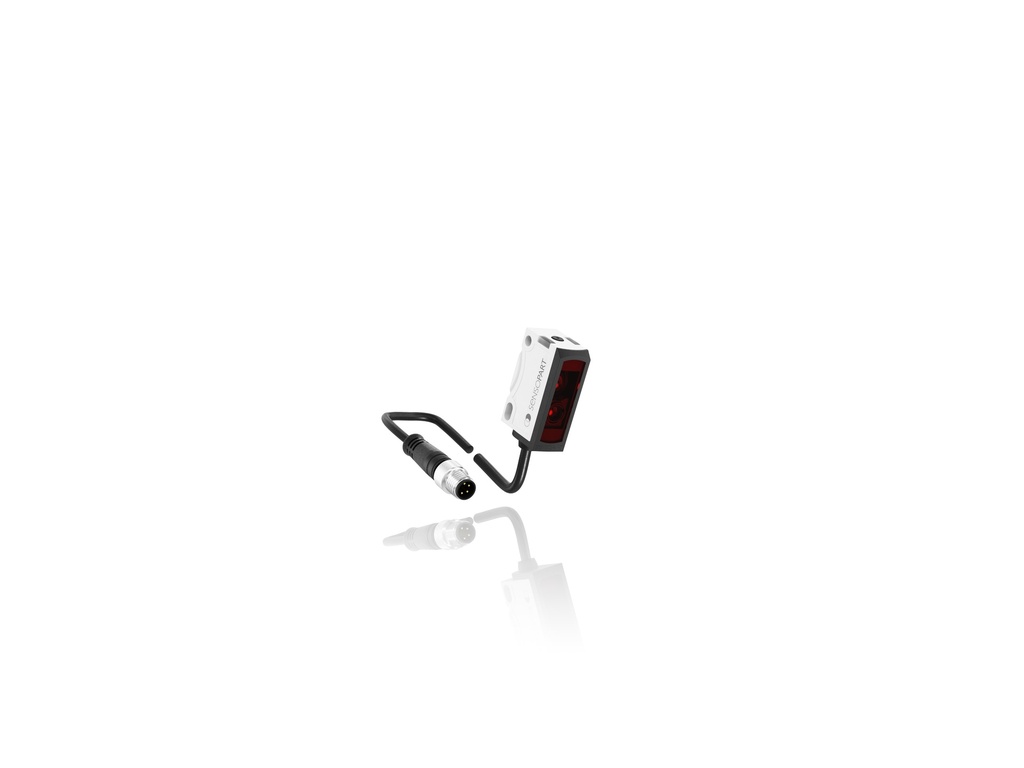

SENSOPART FR 25-RL-PNSL-KL4

SensoPart FR 25-RL-PNSL-KL4 — Photoelectric retro-reflective sensor, 13 m, laser, Auto-Detect, teach- in, pigtail 150 mm with plug M12 4-pin, IP 67 & IP 69. Genuine product, supplied and supported by ZTEC.

190.49 € 190.49 €
kr 1,423.93
(Tax excluded)
Contact Us
Documents
SENSOPART FR 25-RL-PNSL-KL4 - Brochure 2.pdf SENSOPART FR 25-RL-PNSL-KL4 - Brochure.pdf SENSOPART FR 25-RL-PNSL-KL4 - CAD.zip SENSOPART FR 25-RL-PNSL-KL4 - Datasheet 2.pdf SENSOPART FR 25-RL-PNSL-KL4 - Datasheet.pdf SENSOPART FR 25-RL-PNSL-KL4 - IODD.pdf SENSOPART FR 25-RL-PNSL-KL4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

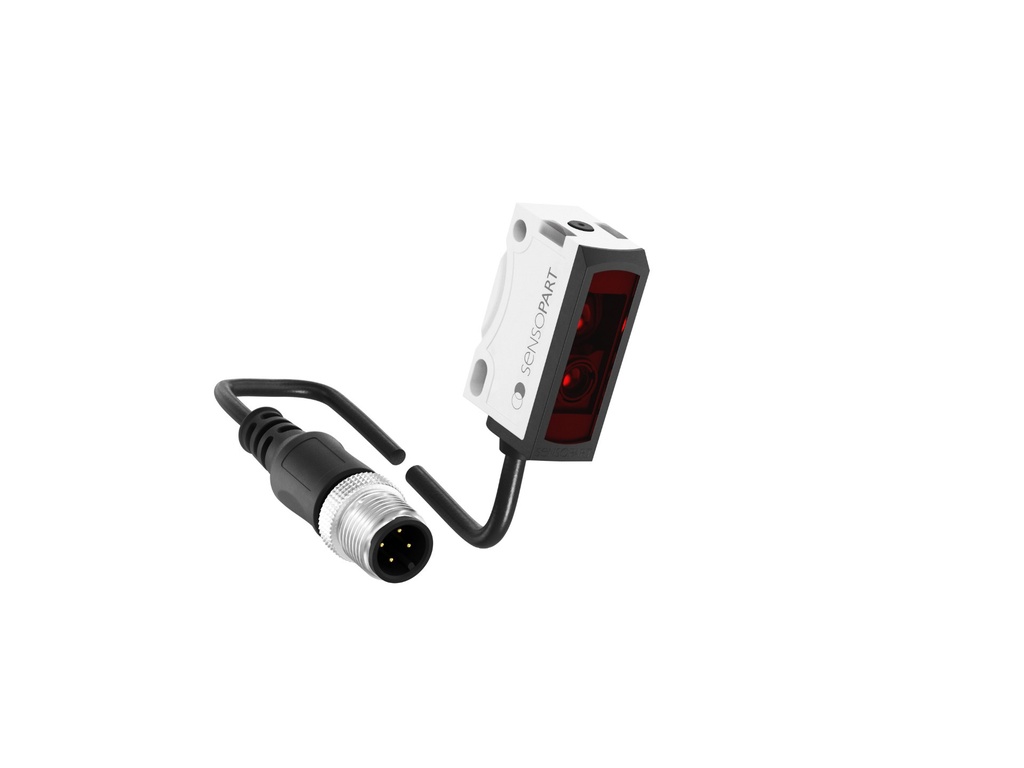

SensoPart FR 25-RL-PNSL-KL4

A retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting

Order code
FR 25-RL-PNSL-KL4
Order number
609-31015
SensoPart FR 25-RL-PNSL-KL4
Working distance
100
Output
PNP/NPN (auto detect)
Connection
Pigtail, plug M12, 4-wire, 150 mm
Interface
IO-Link

SensoPart FR 25-RL-PNSL-KL4 is a retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Particularly suitable for short-range applications
✓Suitable for a wide variety of different reflectors
✓Very small, easily visible laser light spot
✓Sensor settings via teach-in and control input
✓Robust glass-fibre-reinforced plastic housings
✓Setting of smart functions via IO-Link

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principlePhotoelectric retro-reflective sensor

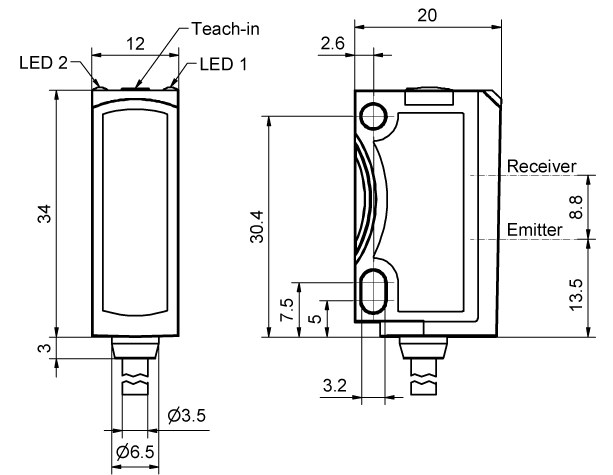

SeriesF25 (34 x 20 x 12 mm)
Working distance min. [mm]100
Working distance max. [mm]13000
Velocity [Hz]4000
InterfaceIO-Link
AdjustmentTeach-in
Light sourceLaser, red (Class 1)
Switching outputPNP/NPN (auto detect)
Temperature range [°C]-20 ... +60
Connection typePigtail, plug M12, 4-wire, 150 mm
Enclosure ratingIP69
