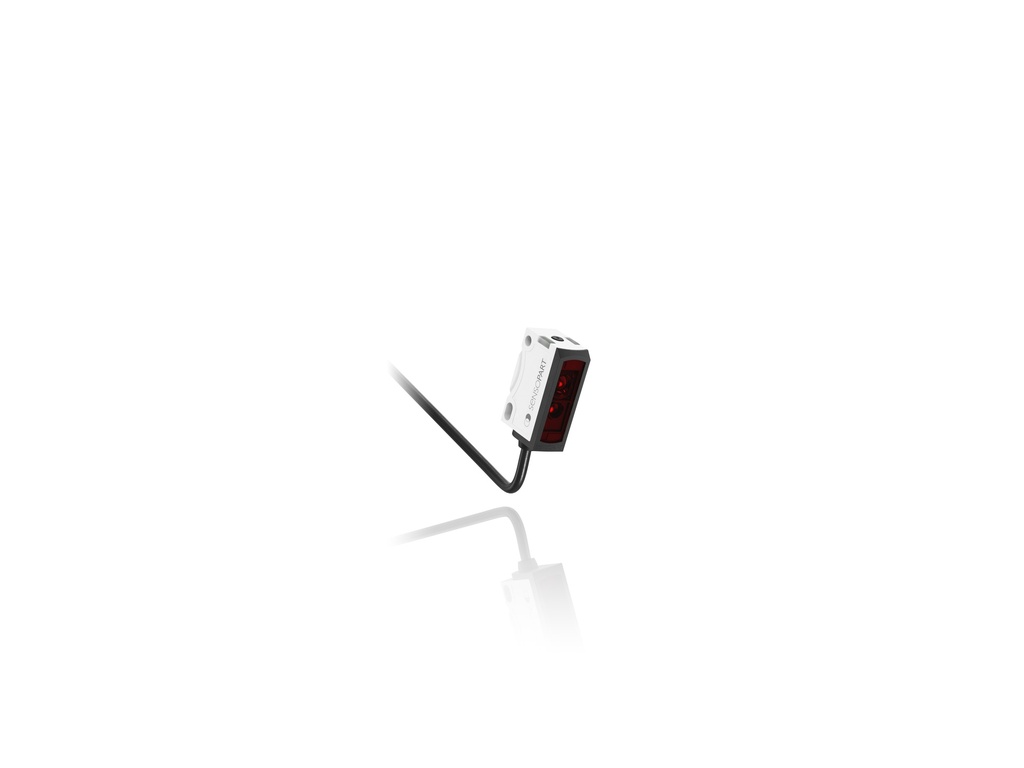

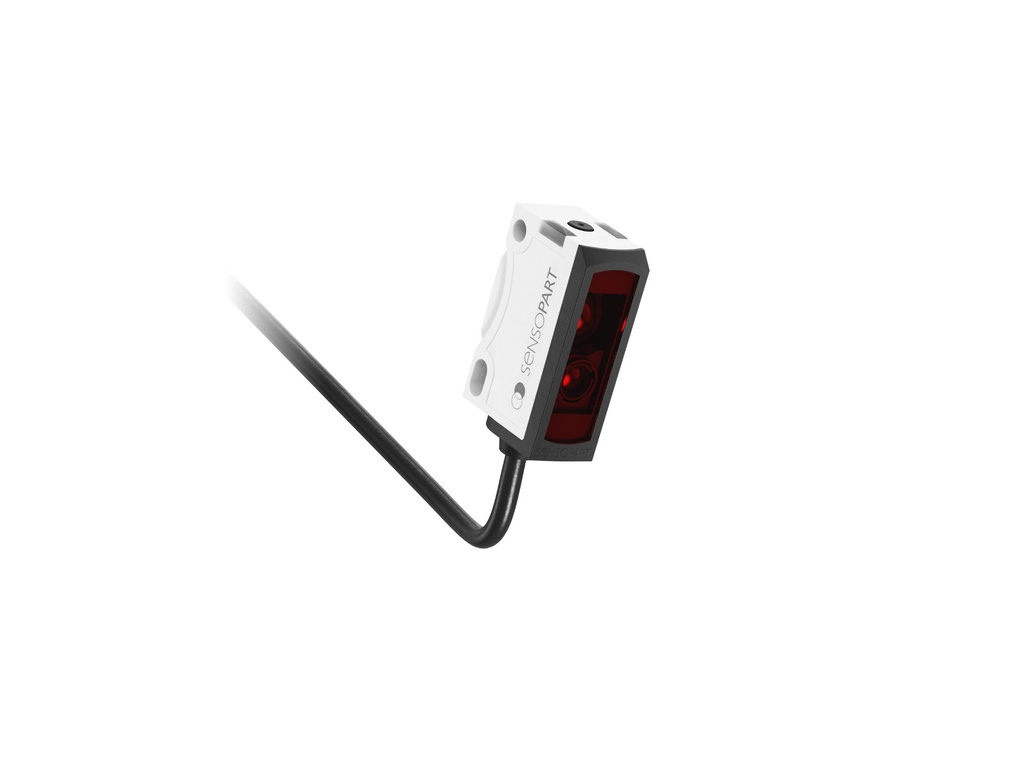

SENSOPART FR 25-RLO1-PNSL-K4

SensoPart FR 25-RLO1-PNSL-K4 — Photoelectric retro-reflective sensor with autocollimation, 4m, 10 kHz, laser, Auto-Detect, teach-in, cable 2m 4-wire, IP 67 &. Genuine product, supplied and supported by ZTEC.

294.50 € 294.50 €
kr 2,201.30
(Tax excluded)
Contact Us
Documents
SENSOPART FR 25-RLO1-PNSL-K4 - Brochure 2.pdf SENSOPART FR 25-RLO1-PNSL-K4 - Brochure.pdf SENSOPART FR 25-RLO1-PNSL-K4 - CAD.zip SENSOPART FR 25-RLO1-PNSL-K4 - Datasheet 2.pdf SENSOPART FR 25-RLO1-PNSL-K4 - Datasheet.pdf SENSOPART FR 25-RLO1-PNSL-K4 - IODD.pdf SENSOPART FR 25-RLO1-PNSL-K4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FR 25-RLO1-PNSL-K4

A retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting

Order code
FR 25-RLO1-PNSL-K4
Order number
609-31020
SensoPart FR 25-RLO1-PNSL-K4
Working distance
0
Output
PNP/NPN (auto detect)
Connection
Plug M8, 4-pin
Interface
IO-Link

SensoPart FR 25-RLO1-PNSL-K4 is a retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Reliable small-part detection over the entire operating range from a size of 0.2 mm
✓Precise front-edge detection even in fastest automation processes thanks to a high switching frequency of 10 kHz
✓Constant detection position with lateral object approach over the entire operating range for maximum switching point and positioning accuracy
✓Setting of smart functions via IO-Link

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principlePhotoelectric retro-reflective sensor

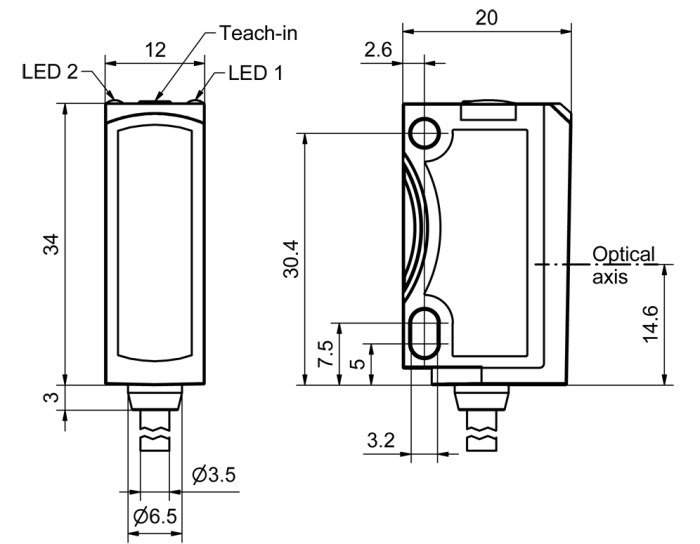

SeriesF25 (34 x 20 x 12 mm)
Working distance min. [mm]0
Working distance max. [mm]4000
Velocity [Hz]10000
InterfaceIO-Link
AdjustmentTeach-in
Light sourceLaser, red (Class 1)
Switching outputPNP/NPN (auto detect)
Temperature range [°C]-20 ... +60
Connection typePlug M8, 4-pin
Enclosure ratingIP69
