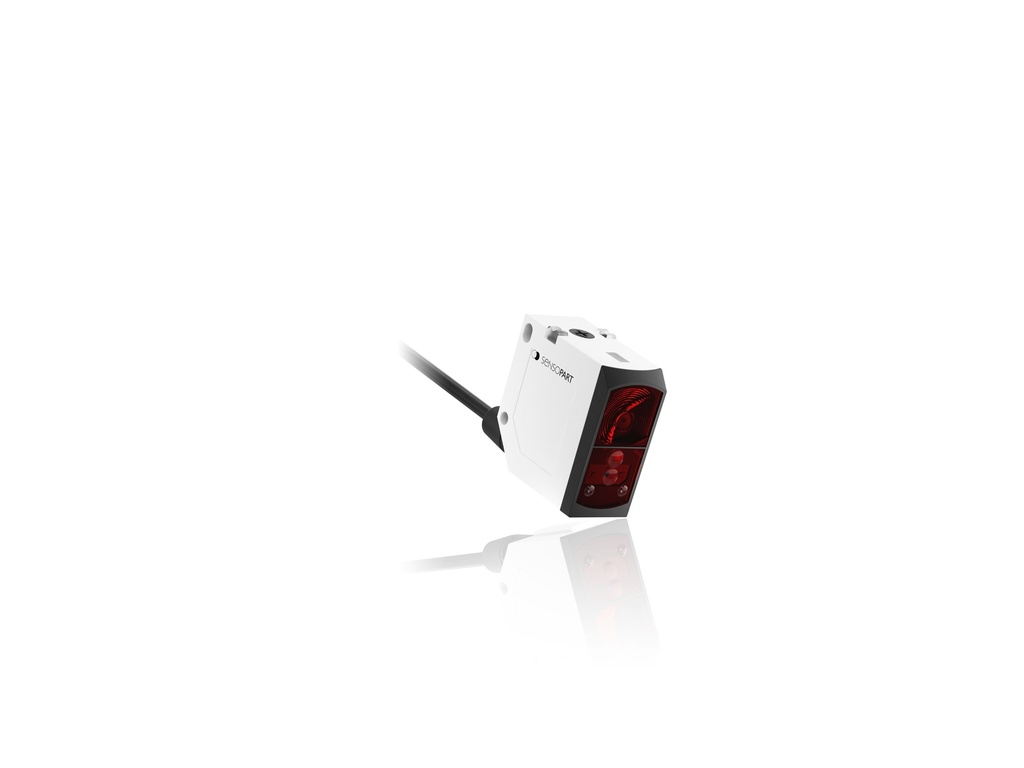

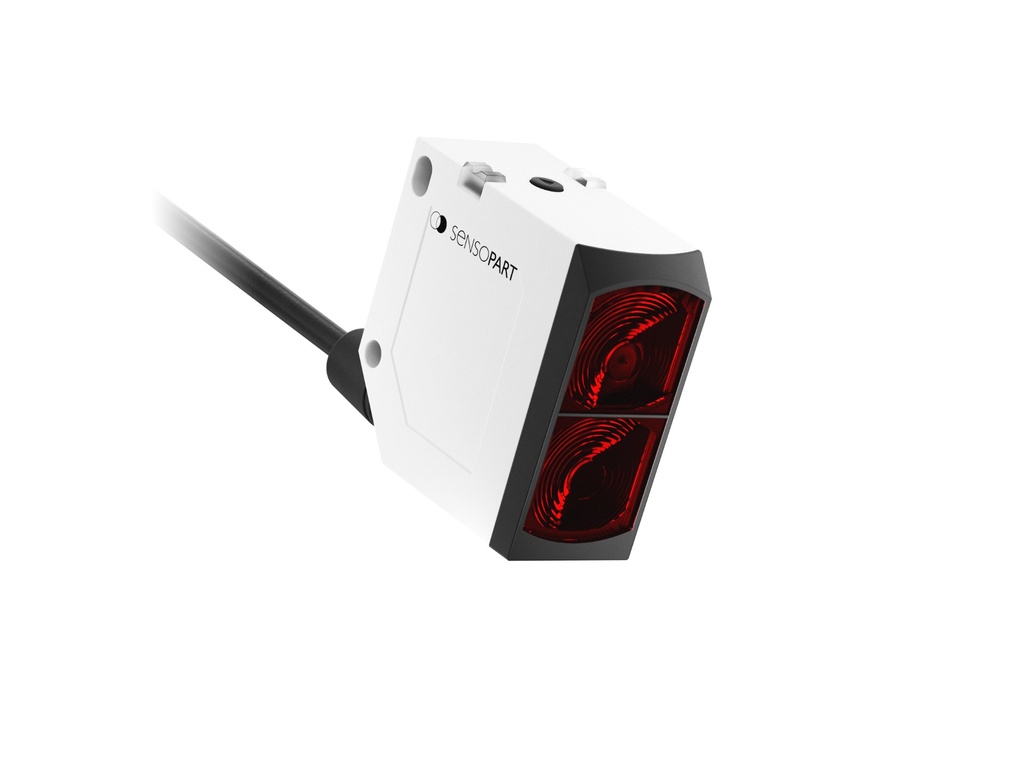

SensoPart FE 55-RL-PS-K4

A through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects

Order code
FE 55-RL-PS-K4
Order number
620-21009
SensoPart FE 55-RL-PS-K4
Working distance
0
Output
PNP
Connection
Cable, 4-wire, 3 m
Protection
IP69K, IP 67

SensoPart FE 55-RL-PS-K4 is a through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Long range combined with precise laser light spot for extremely accurate small-part detection
✓High switching frequency for the reliable detection of even the most rapid processes
✓Sensor adjustment via teach-in and control input
✓Plug and cable connection rotatable

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]25000
Light sourceLaser, red (Class 1)
Electrical data
Switching outputPNP
Velocity [Hz]3500
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP69K, IP 67

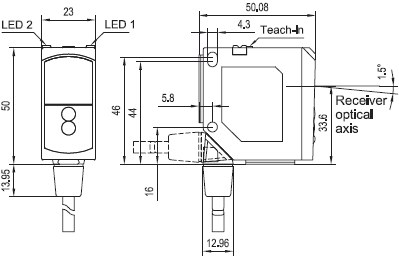

SeriesF55 (50 x 50,1 x 23 mm)
Temperature range [°C]-20 ... +60
Connection typeCable, 4-wire, 3 m
Additional specifications
Sensor principlePhotoelectric through-beam sensor

Accessories and compatible hardware

Complete your solution — compatible mountings, cables and optics.

Recommended accessories

MA 18
Accessory
MA 18
View product →
MA 30
Accessory
MA 30
View product →
MC 08
Accessory
MC 08
View product →
MC 30
Accessory
MC 30
View product →
