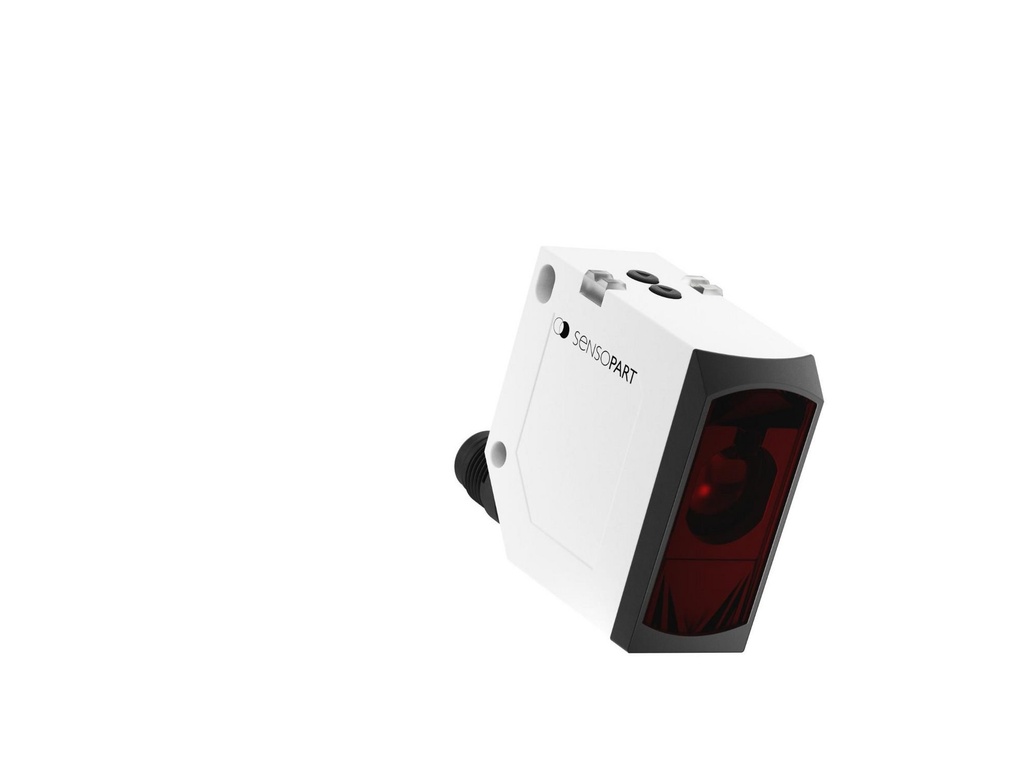

SENSOPART FT 55-RLAP2-2PNSL-L5

SensoPart FT 55-RLAP2-2PNSL-L5 — Distance sensor with time-of-flight measurement, button, 0.06...5 m, laser, measured value output via IO-Link, 2x auto-detect. Genuine product, supplied and supported by ZTEC.

393.96 € 393.96 €
kr 2,945.03
(Tax excluded)
Contact Us
Documents
SENSOPART FT 55-RLAP2-2PNSL-L5 - CAD.zip SENSOPART FT 55-RLAP2-2PNSL-L5 - Datasheet 2.pdf SENSOPART FT 55-RLAP2-2PNSL-L5 - Datasheet.pdf SENSOPART FT 55-RLAP2-2PNSL-L5 - IODD.zip
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 55-RLAP2-2PNSL-L5

An optical distance sensor for accurate, non-contact distance and position measurement

Order code
FT 55-RLAP2-2PNSL-L5
Order number
622-21022
SensoPart FT 55-RLAP2-2PNSL-L5
Repeatability
Specification 6σ, reference material 90% remission, at 50 Hz
Output
2 x Auto-detect/PNP/NPN
Protection
2

SensoPart FT 55-RLAP2-2PNSL-L5 is an optical distance sensor for accurate, non-contact distance and position measurement, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Measured value output via IO-Link
✓For detection tasks on all object surfaces at great distances
✓Reliable object detection even with inclined objects, as well as with bright, highly reflective or luminous backgrounds
✓Compact design for easy integration
✓Easy teach-in
✓Highly visible laser light spot of laser class 1 for easy alignment and full eye safety

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationLogisticsPackagingMachinery
Object and presence detection
Object and presence detection
Edge and fill-level monitoring
Edge and fill-level monitoring
Counting and positioning
Counting and positioning on the line
Label and mark detection
Label and mark detection

Specifications

Optical data
Light sourceLaser
Laser class1 (IEC 60825-1)
Light colorRed
Functions
Display, LED yellowSchaltausgangsanzeige Q
Display, LED greenOperating voltage indicator
Default settings3 m, Auto-detect, N.O.
Measuring range adjustmentvia teach-in button, control input and IO-Link
IO-Link
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
Electrical data
Reverse polarity protectionYes
Short circuit protectionYes
Control input+UB = Teach-in -UB = Button locked Open = normal operation
Measured value outputIO Link
Protection class2
Output functionN.O./N.C.
Switching output Q2 x Auto-detect/PNP/NPN
Number of outputs2
Explanation of switching output QAuto-Detect: automatic selection of PNP or NPN by sensor, PNP or NPN can be configured permanently
- Number of pins5
Mechanical data
Front panel materialPMMA
Housing materialABS
Explanation of protection classmit angeschlossenem IP 67 / IP 69K Stecker
Vibration and shock resistanceEN IEC 60947-5-2
Connection namePlug, M12x1, 5-pin, IO-Link
Housing typeCuboidal
- ThreadM12x1
Additional specifications
Explanation of the setting rangeReference material white, 90% remission Working range: White, 90%, 60...5000 mm Gray, 20%, 60...5000 mm Black, 5%, 60...3000 mm
Explanation of linearitySpecification +/-, reference material 20...90%, the specified precision is achieved by teaching the distances
Explanation of repeatabilitySpecification 6σ, reference material 90% remission, at 50 Hz
Setting optionsAuto-detect/PNP/NPN and N.O./N.C. via teach-in button and control input Wide range of setting options for service and process data via IO-Link
Explanation of operation at ambient air temperatureUL: max. +45 °C
