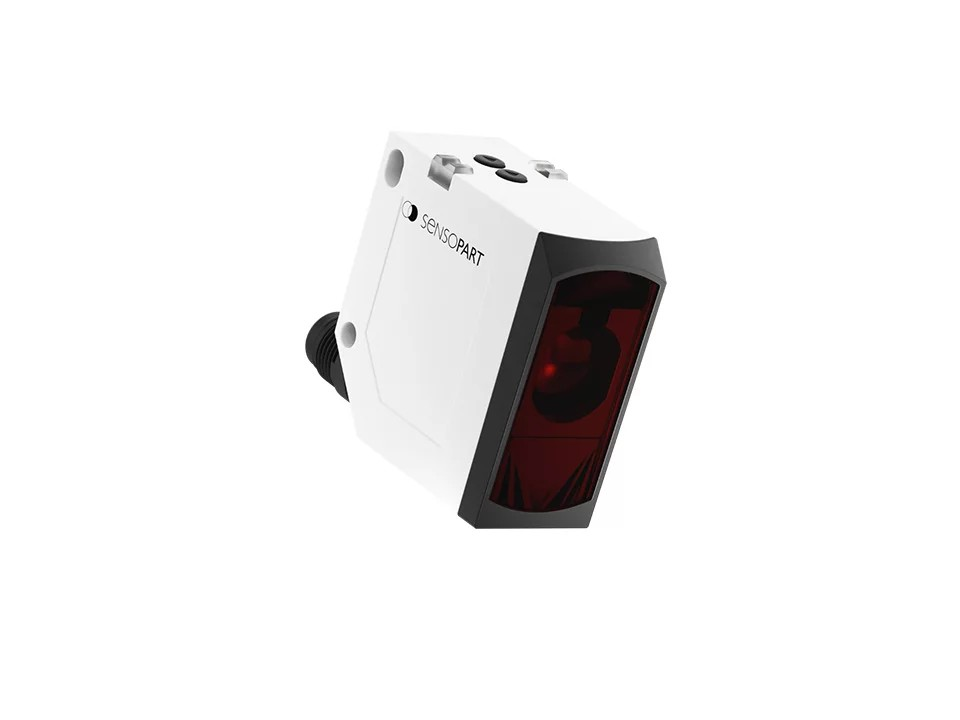

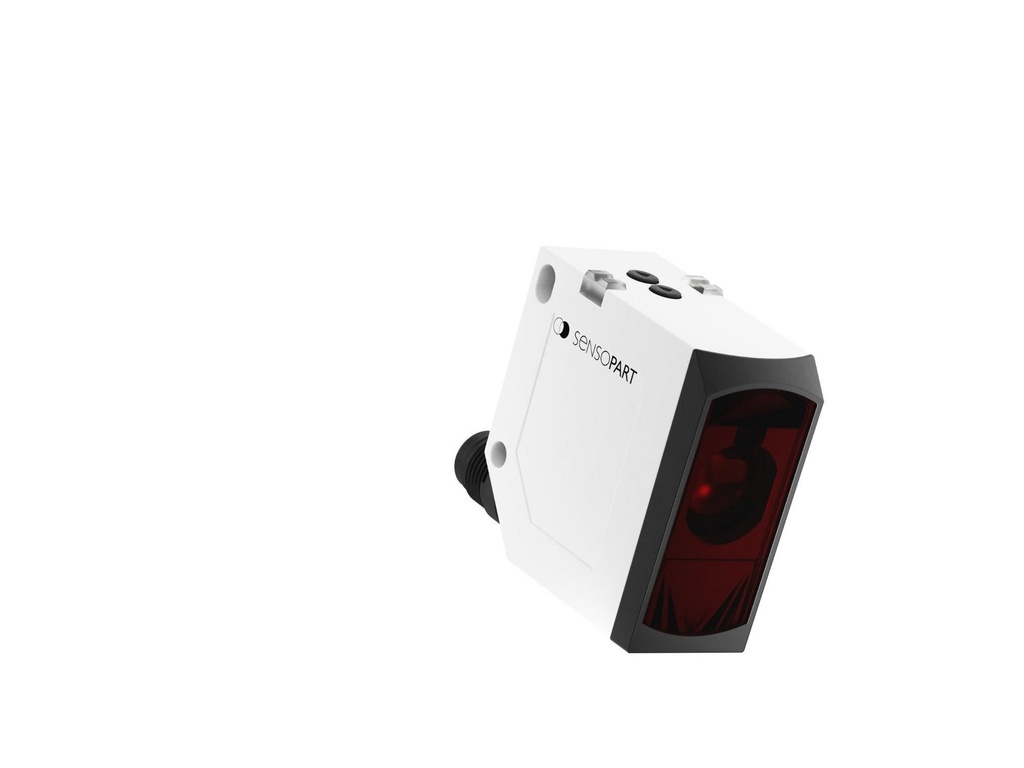

SENSOPART FT 55-RLAP-5-PNSUL-L5

SensoPart FT 55-RLAP-5-PNSUL-L5 — Distance sensor with time-of-flight measurement, button, 0.1...5 m, laser, analogue 0...10 V, auto-detect, N.O./N.C., teach-in. Genuine product, supplied and supported by ZTEC.

404.45 € 404.45 €
kr 3,023.52
(Tax excluded)
Contact Us
Documents
SENSOPART FT 55-RLAP-5-PNSUL-L5 - CAD.zip SENSOPART FT 55-RLAP-5-PNSUL-L5 - Datasheet 2.pdf SENSOPART FT 55-RLAP-5-PNSUL-L5 - Datasheet.pdf SENSOPART FT 55-RLAP-5-PNSUL-L5 - IODD.zip
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 55-RLAP-5-PNSUL-L5

An optical distance sensor for accurate, non-contact distance and position measurement

Order code
FT 55-RLAP-5-PNSUL-L5
Order number
622-21024
SensoPart FT 55-RLAP-5-PNSUL-L5
Repeatability
Specification 6σ, reference material 90% remission, at 50 Hz
Output
Auto-detect/PNP/NPN
Protection
2

SensoPart FT 55-RLAP-5-PNSUL-L5 is an optical distance sensor for accurate, non-contact distance and position measurement, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓For measuring and control tasks on all object surfaces at great distances
✓Stable and precise distance measurement even with inclined objects as well as bright, highly reflective or luminous backgrounds
✓Compact design for easy integration
✓High flexibility due to invertible analogue characteristic curve (QA) and switching-window function (Q)
✓Easy commissioning and operation with external teach-in
✓Highly visible laser light spot of laser class 1 for easy alignment and full eye safety

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationLogisticsPackagingMachinery
Object and presence detection
Object and presence detection
Edge and fill-level monitoring
Edge and fill-level monitoring
Counting and positioning
Counting and positioning on the line
Label and mark detection
Label and mark detection

Specifications

Optical data
Light sourceLaser
Laser class1 (IEC 60825-1)
Light colorRed
Functions
Display, LED yellowLED 1 yellow: Switching output indicator; LED 2 yellow: Analogue output status indicator
Display, LED greenOperating voltage indicator
Default settingsAnalogue output QA: 0.1...10 V, 0.3...3 m Switching output Q: 0.3...3 m, auto-detect, N.O.
Switching output QAuto-detect/PNP/NPN
Measuring range adjustmentvia teach-in button, control input and IO-Link
IO-Link
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
Electrical data
Reverse polarity protectionYes
Short circuit protectionYes
Analog output QA4 … 20 mA / 0,1 … 10 V
Control input+UB = Teach-in -UB = Button locked Open = normal operation
Protection class2
Explanation of load≤ 500 Ohm (4...20 mA) / ≥ 4 kOhm (0.1...10 V)
Output functionN.O./N.C.
Number of outputs2
Averaging times1/10/20/30/40/50/60/70/80/90/100
Measured value outputAnalog (voltage), Analog (current), IO Link
Explanation of switching output QAuto-Detect: automatic selection of PNP or NPN by sensor, PNP or NPN can be configured permanently
- Number of pins5
Mechanical data
Front panel materialPMMA
Housing materialABS
Explanation of protection classmit angeschlossenem IP 67 / IP 69K Stecker
Vibration and shock resistanceEN IEC 60947-5-2
Connection namePlug, M12x1, 5-pin, IO-Link
Housing typeCuboidal
- ThreadM12x1
Additional specifications
Explanation of the setting rangeReference material white, 90% remission Working range: White, 90%, 100...5000 mm Gray, 20%, 100...5000 mm Black, 5%, 100...3000 mm
Explanation of linearitySpecification +/-, reference material 20...90% remission, the specified precision is achieved by teaching the distances
Explanation of repeatabilitySpecification 6σ, reference material 90% remission, at 50 Hz
Setting optionsAdjustable analogue measurement range QA Analogue characteristic curve invertible Adjustable switching output Q (switching window) N.O./N.C. and auto-detect/NPN/PNP via teach-in button and control input Wide range of setting options for service and process data via IO-Link
Explanation of operation at ambient air temperatureUL: max. +45 °C
