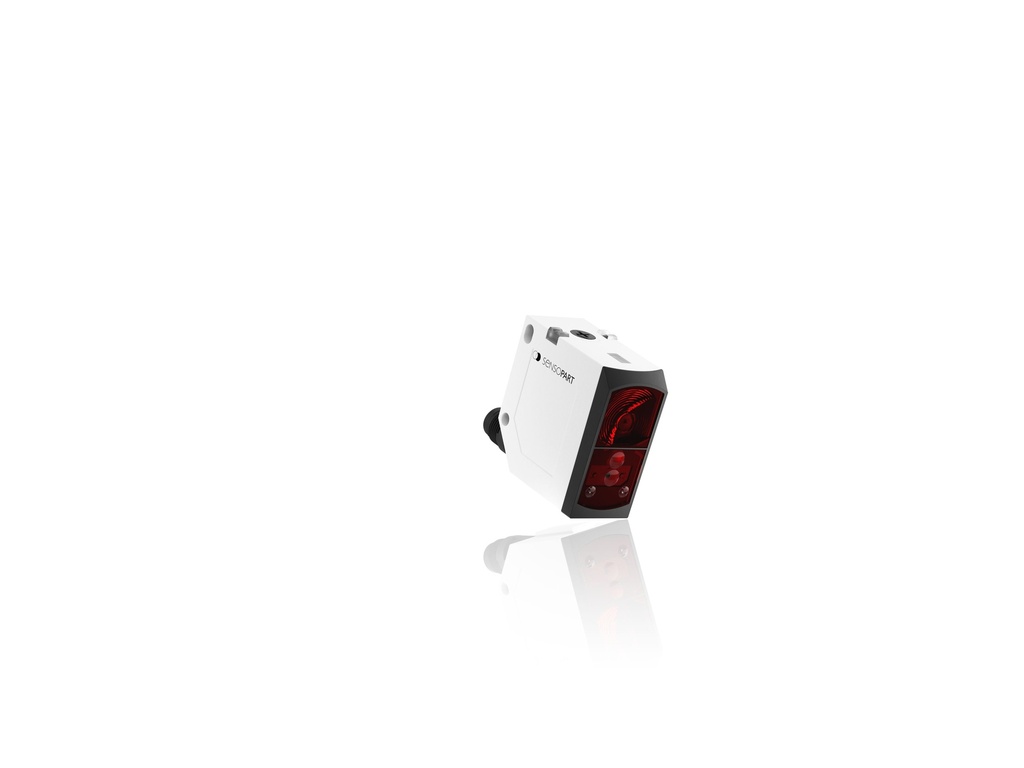

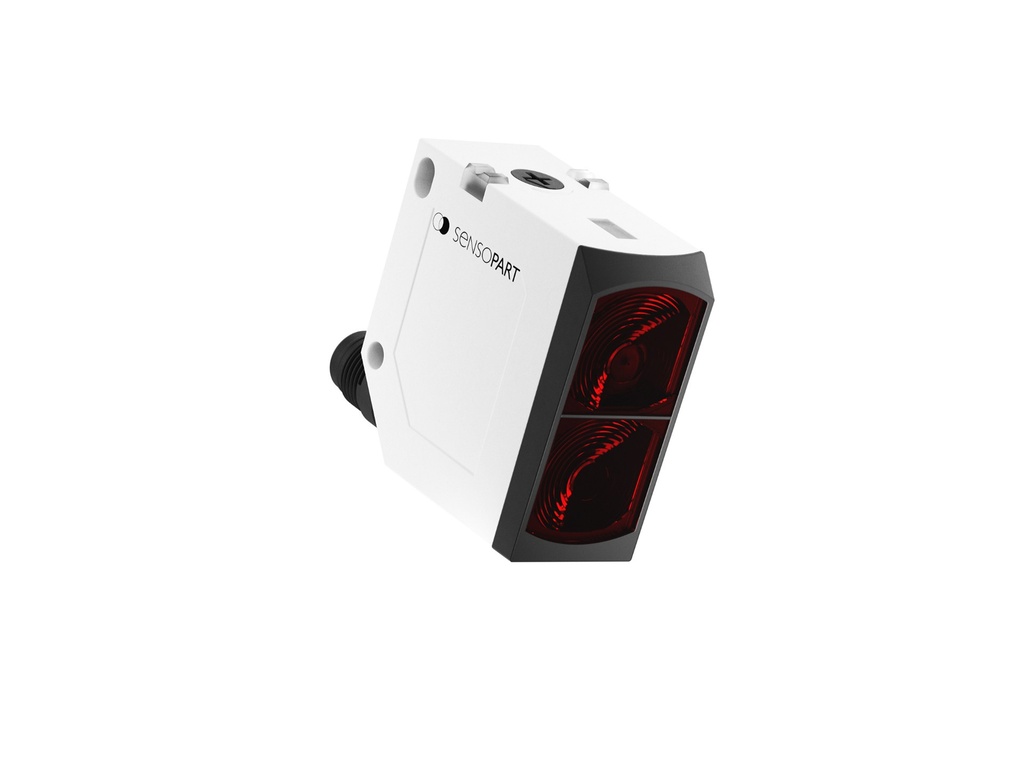

SensoPart FT 55-RLH-NS-L4

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 55-RLH-NS-L4
Order number
623-11019
SensoPart FT 55-RLH-NS-L4
Working distance
5
Output
NPN
Connection
Plug M12, 4-pin
Protection
IP69K, IP 67

SensoPart FT 55-RLH-NS-L4 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

Differentiation of even the slightest of grey value differences
Sensor adjustment via teach-in and control input
Very small, easily visible laser light spot
Plug and cable connection rotatable

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]5
Working distance max. [mm]800
Light sourceLaser, red (Class 1)
Electrical data
Switching outputNPN
Velocity [Hz]1000
Functions
AdjustmentPotentiometer
Mechanical data
Enclosure ratingIP69K, IP 67
SeriesF55 (50 x 50,1 x 23 mm)
Temperature range [°C]-20 ... +60
Connection typePlug M12, 4-pin
Additional specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression

Accessories and compatible hardware

Complete your solution — compatible mountings, cables and optics.
