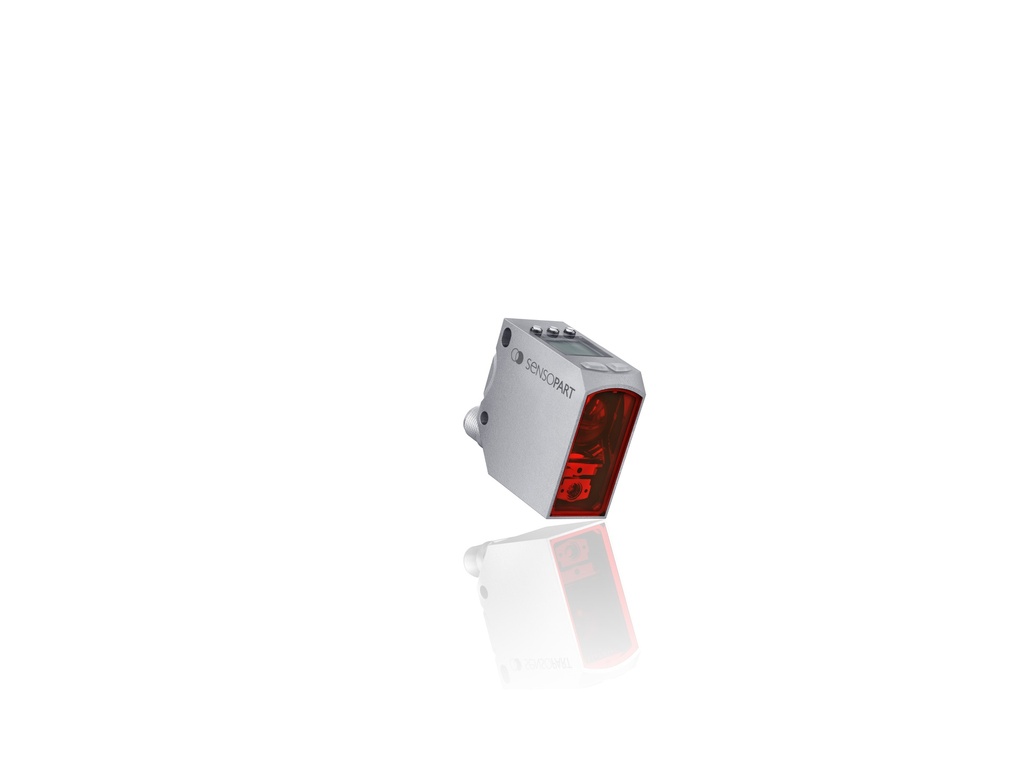

SENSOPART FT 55-RLHM-1000-2PNSDL-L5M

SensoPart FT 55-RLHM-1000-2PNSDL-L5M — Diffuse sensor with background suppression, 200 ... 1000 mm, laser (class 1), 2xQ, Auto-detect, Teach-in, Display, IP 67 / IP 6. Genuine product, supplied and supported by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
SENSOPART FT 55-RLHM-1000-2PNSDL-L5M - Brochure 2.pdf SENSOPART FT 55-RLHM-1000-2PNSDL-L5M - Brochure.pdf SENSOPART FT 55-RLHM-1000-2PNSDL-L5M - CAD.zip SENSOPART FT 55-RLHM-1000-2PNSDL-L5M - Datasheet.pdf SENSOPART FT 55-RLHM-1000-2PNSDL-L5M - IODD.pdf SENSOPART FT 55-RLHM-1000-2PNSDL-L5M - Manual 2.pdf SENSOPART FT 55-RLHM-1000-2PNSDL-L5M - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

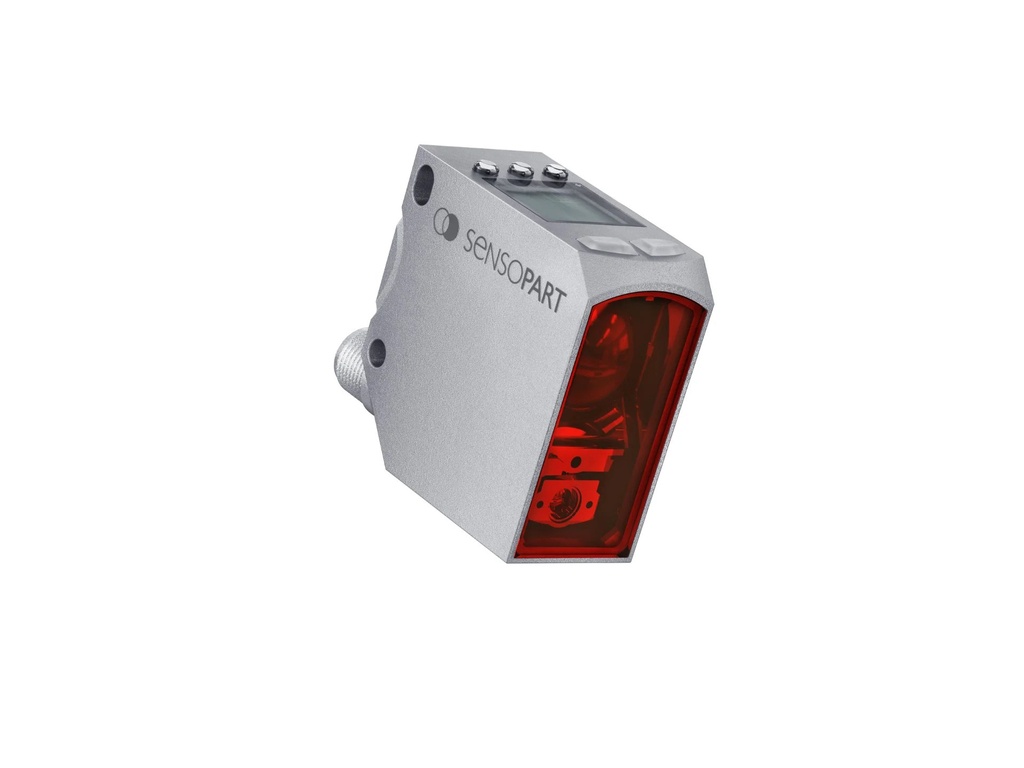

SensoPart FT 55-RLHM-1000-2PNSDL-L5M

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 55-RLHM-1000-2PNSDL-L5M
Order number
623-11043
SensoPart FT 55-RLHM-1000-2PNSDL-L5M
Working distance
0
Output
PNP/NPN, antivalent, Push-pull
Connection
Plug M12, 5-pin
Interface
IO-Link

SensoPart FT 55-RLHM-1000-2PNSDL-L5M is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Switching hysteresis of 2 enables smart part detection even at large distances up to 1000 mm
✓Display for a higher level of user-comfort and a fast and easy setup of the sensor
✓Most stable presence check thanks to intelligent evaluation algorithm

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression

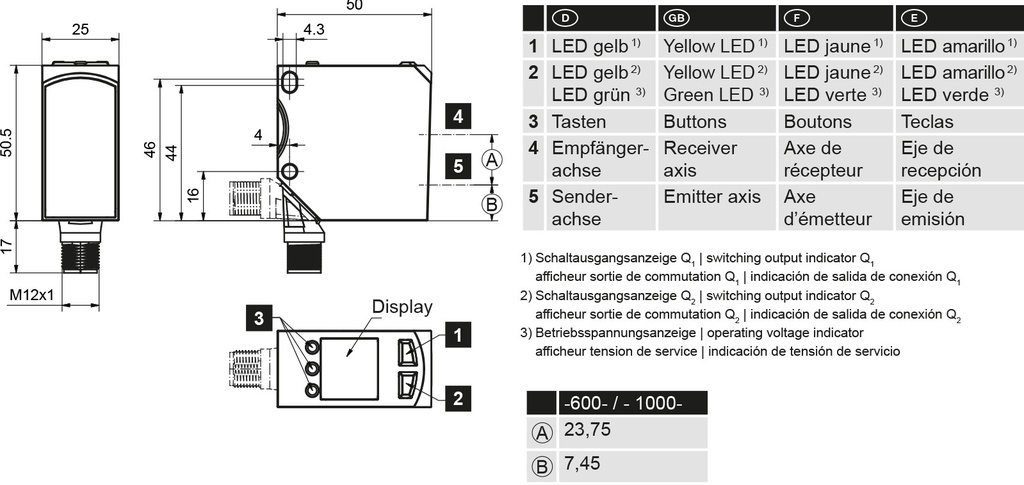

SeriesF55 (50 x 50,1 x 23 mm)
Working distance min. [mm]0
Working distance max. [mm]1000
Velocity [Hz]1000
InterfaceIO-Link
AdjustmentTeach-in
Light sourceLaser, red (Class 1)
Switching outputPNP/NPN, antivalent, Push-pull
Temperature range [°C]-20 ... +60
Connection typePlug M12, 5-pin
Enclosure ratingIP 67, IP69
