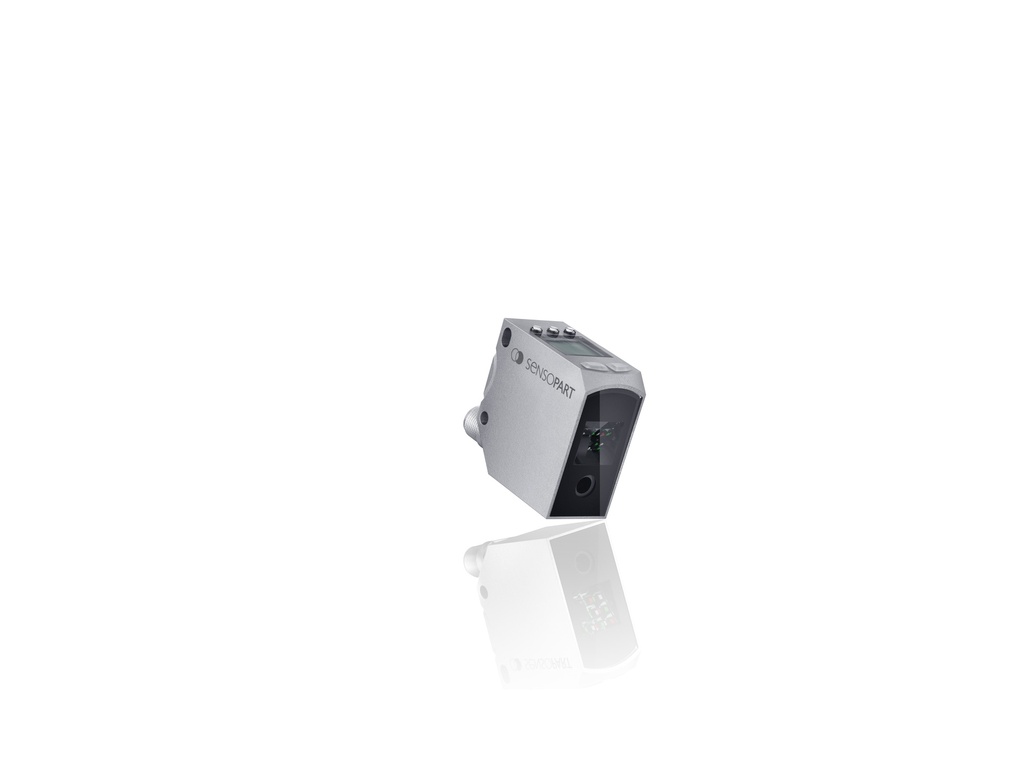

SensoPart FT 55-CM-3-PNSD-L8M

A colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control

Order code
FT 55-CM-3-PNSD-L8M
Order number
625-11010
SensoPart FT 55-CM-3-PNSD-L8M
Output
PNP/NPN (auto detect)
Protection
IP 67, IP 69

SensoPart FT 55-CM-3-PNSD-L8M is a colour and contrast sensor that verifies colour, print marks and contrast features for quality and registration control.

Key features

✓Stable processes thanks to intelligent color detection, regardless of distance
✓Economical solutions through up to twelve storable colors or jobs
✓Dependable switching behaviour through reliable glare suppression (depending on model)
✓Intuitive sensor setup with integrated LCD display
✓Customised adjustment to applications through digital color value output using IO-Link

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Light sourceLED
Light colorWhite
Explanation of switching frequencyti/tp 1:1
Display, LED yellowLED 2: Switching output indicator
Display, LED greenLED 1: Operating voltage indicator, IO-Link
Setting optionsDifferent detection modes; NO / NC; Binary output; Auto detect / NPN / PNP; Button lock via control input; Switch-on and switch-off delay; Comprehensive IO-Link functions; Speed / averaging
Number of savable colors12
Sensor settingvia display or IO-Link
Averaging times3 Hz, 30 Hz (Werkseinstellung), 100 Hz, 300 Hz, 500 Hz, 1,5 kHz, 3 kHz (nur Q1 und Q2 verfügbar)
DisplayLCD, 75 x 71 pixels
Front panel materialPMMA
Housing materialZN-Druckguss, mattchrom
Display materialPMMA
Protection classIP 67, IP 69
Explanation of protection classmit angeschlossenem IP 67 / IP 69 Stecker
Vibration and shock resistanceEN 60947-5-2
Connection nameMetal plug M12, 8-pin
Explanation of no-load current24 V DC
Reverse polarity protectionYes
Short circuit protectionYes
Control inputTrigger, KeyLock
Output functionN.O./N.C.
Switching output QPNP/NPN (auto detect)
Explanation of switching output QAutomatic selection of PNP or NPN based on Q1
Note on IO-Link availabilityAn 8-pin to 4-pin cable must be used in IO-link operation
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
