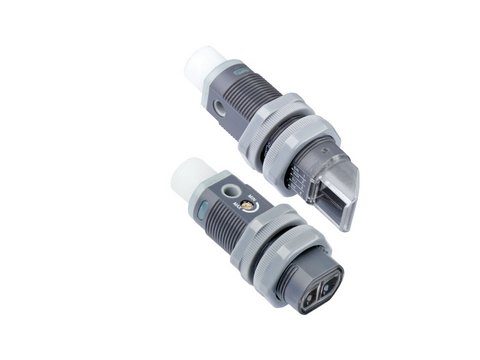

SensoPart FT 18-2 RW-PS-L4

A photoelectric sensor for reliable object detection in factory automation

Order code
FT 18-2 RW-PS-L4
Order number
740-21036
SensoPart FT 18-2 RW-PS-L4
Working distance
0
Output
PNP
Connection
Metal plug M12, 4-pin
Protection
IP 67

SensoPart FT 18-2 RW-PS-L4 is a photoelectric sensor for reliable object detection in factory automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Economical solution for numerous applications
✓Scanning distance of up to 800 mm, adjustable via potentiometer
✓Red light or infrared • Variants with angled light exit
✓Simple adjustment via potentiometer
✓2 through holes as additional mounting possibility

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]320
Light sourceLED, red
Electrical data
Switching outputPNP
Velocity [Hz]1000
Functions
AdjustmentPotentiometer
Mechanical data
Enclosure ratingIP 67
SeriesM18
Temperature range [°C]-25 ... +55
Connection typeMetal plug M12, 4-pin
Additional specifications
Sensor principlePhotoelectric diffuse sensor
