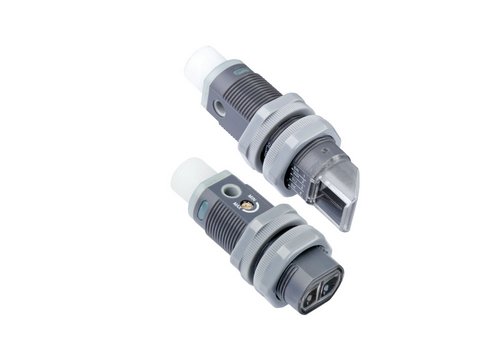

SensoPart FR 18-2 I-NS-K4

A photoelectric sensor for reliable object detection in factory automation

Order code
FR 18-2 I-NS-K4
Order number
741-11025
SensoPart FR 18-2 I-NS-K4
Working distance
0
Output
NPN
Connection
Cable, 4-wire, 2 m
Protection
IP 67

SensoPart FR 18-2 I-NS-K4 is a photoelectric sensor for reliable object detection in factory automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Economical solution for numerous applications
✓Range of up to 3.0 m
✓Variants with angled light exit
✓Polarisation filter for reliable detection of highly reflective surfaces
✓Simple adjustment via potentiometer
✓2 through holes as additional mounting possibility

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]3600
Light sourceLED, infrared
Electrical data
Switching outputNPN
Velocity [Hz]1000
Functions
AdjustmentPotentiometer

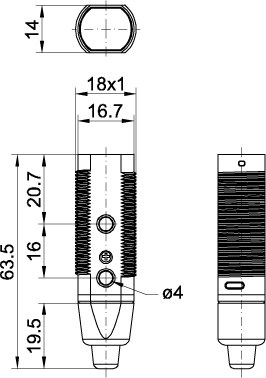

Mechanical data
Enclosure ratingIP 67
SeriesM18
Temperature range [°C]-25 ... +55
Connection typeCable, 4-wire, 2 m
Additional specifications
Sensor principlePhotoelectric retro-reflective sensor
