SensoPart FT 10-RLA-60-PNSL-KM4

An optical distance sensor for accurate, non-contact distance and position measurement

Order code
FT 10-RLA-60-PNSL-KM4
Order number
600-11175

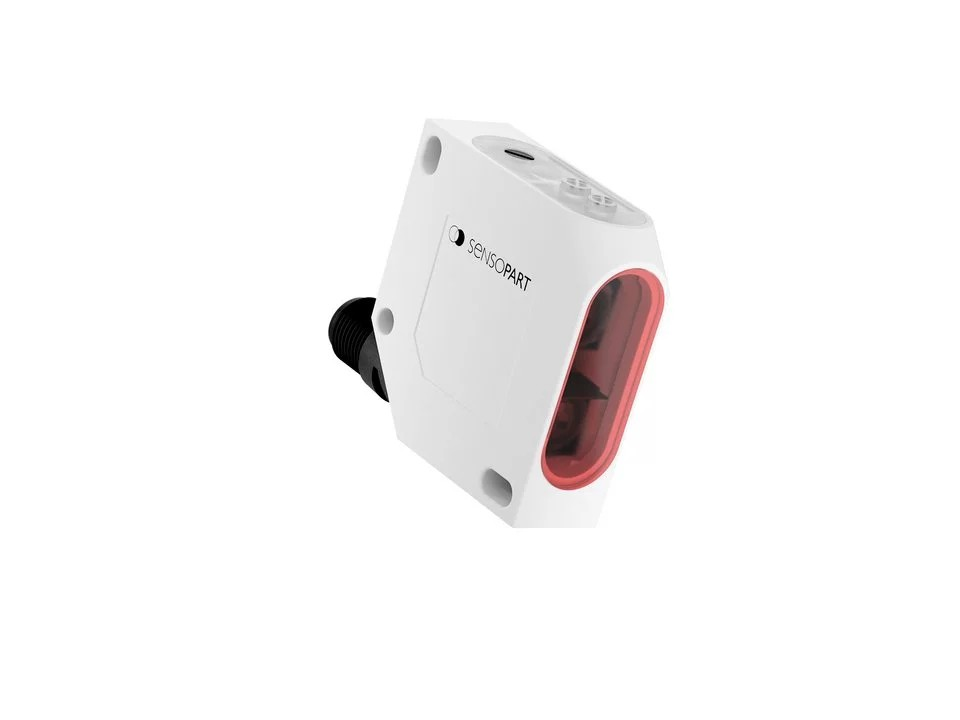

SensoPart FT 10-RLA-60-PNSL-KM4
Repeatability
0.01.0.2 mm (6 σ, see characteristic curve) reference material 90% remission; stationary object
Output
1x Auto-detect (PNP/NPN)
Protection
IP 67

SensoPart FT 10-RLA-60-PNSL-KM4 is an optical distance sensor for accurate, non-contact distance and position measurement.

Key features

✓Minimal weight
✓Thanks to its minimal dimensions, it is also suitable for very small installation spaces
✓Measured value output via IO-Link
✓Configurable averaging times
✓Laser class 1 for optimal eye safety

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationLogisticsPackagingMachinery
Object and presence detection
Object and presence detection
Edge and fill-level monitoring
Edge and fill-level monitoring
Counting and positioning
Counting and positioning on the line
Label and mark detection
Label and mark detection

Specifications

Specifications
Explanation of the setting rangeReference material 5.90% remission
Explanation of linearity± 0.2.0.8 mm (see characteristic curve), reference material 90% remission
Explanation of repeatability0.01.0.2 mm (6 σ, see characteristic curve) reference material 90% remission; stationary object
Light sourceLaser
Laser class1 (IEC 60825-1)
Light colorRed
Explanation of switching frequencyti/tp 1:1
Front panel materialPMMA
Housing materialPUR
Explanation of operation at ambient air temperatureUL: max. +30°C
Protection classIP 67
Explanation of protection classwith IP 67 plug connected
Vibration and shock resistanceEN 60947-5-2
Connection namePigtail 200 mm with plug M8, 4-pin, IO-Link
- Number of pins4
- ThreadM8
Housing typeCuboidal
Display, LED yellowSwitching output indicator
Display, LED greenOperating voltage indicator
Setting optionsButton lock via control input N.O./N.C. and Auto-Detect / NPN /PNP via teach-in button or IO-Link Smart functions and averaging rates via IO-Link
Default settingsMeasurement range: 10.70 mm, averaging rate: 4 ms Detection range N.O.: 70 mm
Averaging times4 / 40 / 80 / 120 / 160 / 200 / 240 / 280 / 320 / 360 / 400 ms (factory setting 4 ms)
Measured value outputIO Link
Reverse polarity protectionYes
Short circuit protectionYes
Output functionN.O./N.C.
Switching output Q1x Auto-detect (PNP/NPN)
Explanation of switching output QAuto-detect: automatic selection of PNP or NPN by sensor, PNP or NPN can be configured permanently
Number of outputs1
Explanation of thermal responsetypical
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
