SENSOPART FE 25-RL-NS-M4M

SensoPart FE 25-RL-NS-M4M — For this prodcut a new version is available: 605-21021 FE 25-RL-PNSL-M4M That offers additional functionality via IO-Link. More. Genuine product, supplied and supported by ZTEC.

149.99 € 149.99 €
kr 1,121.21
(Tax excluded)
Contact Us
Documents
SENSOPART FE 25-RL-NS-M4M - Brochure 2.pdf SENSOPART FE 25-RL-NS-M4M - Brochure.pdf SENSOPART FE 25-RL-NS-M4M - CAD.zip SENSOPART FE 25-RL-NS-M4M - Datasheet.pdf SENSOPART FE 25-RL-NS-M4M - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FE 25-RL-NS-M4M

A through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects

Order code
FE 25-RL-NS-M4M
Order number
605-21015
SensoPart FE 25-RL-NS-M4M
Working distance
0
Output
PNP
Connection
Metal plug M8, 4-pin
Protection
IP69K

SensoPart FE 25-RL-NS-M4M is a through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Long range with small and compact housings
✓Test input for checking sensor pair function
✓Very small, easily visible laser light spot
✓Sensor settings via teach-in and control input
✓Robust glass-fibre-reinforced plastic housings

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]18000
Light sourceLaser, red (Class 1)
Electrical data
Switching outputPNP
Velocity [Hz]2000
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP69K

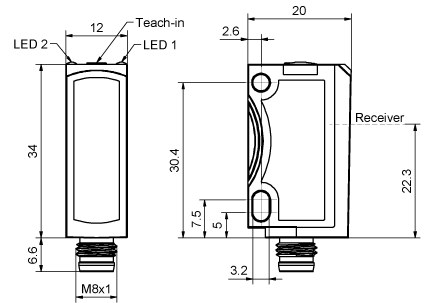

SeriesF25 (34 x 20 x 12 mm)
Temperature range [°C]-20 ... +60
Connection typeMetal plug M8, 4-pin
Additional specifications
Sensor principlePhotoelectric through-beam sensor
