Sensopart FT 50 RLA-100-PL5 Distance sensor, 70...170mm, Resolution 0,1% f.v. of
meas. range, 1 x PNP, N.C./N.O. 4...20 mA,
M12 5-pin cennector.

Sensopart FR 55-RLAP-70-PNSIL-L5 Proximity switch on reflector,
time of flight measurement,
0.3…70m, laser, analogue 4...20mA, Auto-Detect,
N.O./N.C, teach-in, plug M12 5-pin, IP67 <(>&<)> IP69K

IO-Link COM2, min. cycle time 3ms, SIO mode supported
.

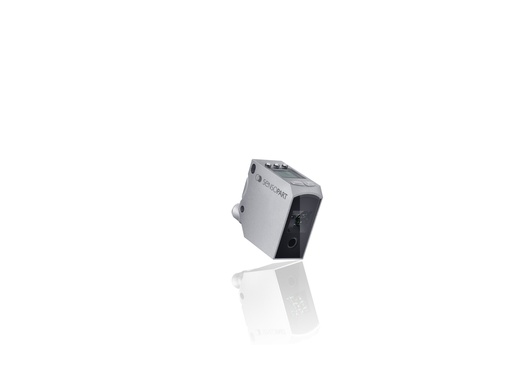

Sensopart FT 55-RLAM-800-PNSUID-S1L8M Laser distance sensor, working distance 200…1000 mm, 2xQ, 4…20mA /
0.1...10V, RS485, laser class 1, Autodetect (PNP/NPN), metal housing, IP
67 / 69K, display, metal connector M12, 8pin.

Sensopart FT 55-RLAM-800-PNSUIDL-L5M Laser distance sensor, working distance 200…1000 mm, 2xQ, QA 4…20mA /
0.1...10V, IO-Link, laser class 1, Autodetect (PNP/NPN), metal housing,
IP 67/ 69, display, metal connector M12, 5pin.

Sensopart FT 55-RLAM-480-PNSUID-S1L8M Laser distance sensor, working distance 120…600 mm, 2xQ, QA 4…20mA /
0.1...10V, RS485, laser class 1, Autodetect (PNP/NPN), metal housing, IP
67 / 69K, display, metal connector M12, 8pin.

Sensopart FT 55-RLAM-480-PNSUIDL-L5M Laser distance sensor, working distance 120…600 mm, 2xQ, QA 4…20mA /
0.1...10V, IO-Link, laser class 1, Autodetect (PNP/NPN), metal housing,
IP 67/ 69, display, metal connector M12, 5pin.

Sensopart FT 55-RLAP2-PNSL-L4 Distance sensor with IO-Link measurement output – time of flight
technology
0.06...5m, laser, Auto-Detect, N.O./N.C., teach-in,
plug M12 4-pin, IP67 <(>&<)> IP69K

IO-Link COM2, min cycletime 3ms, SIO Modus supported,
16 Bit process data
.

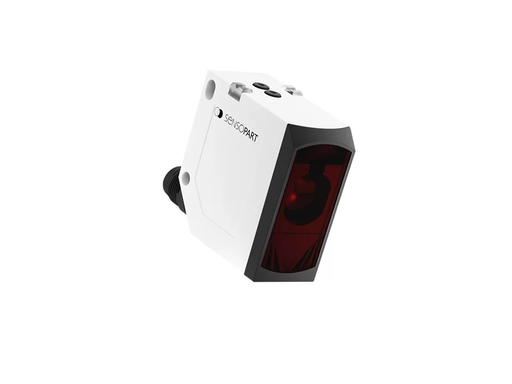

Sensopart FT 55-RLAP-5-PNSUL-L5 distance sensor with time-of-flight measurement, 0,1...5m, laser,
analogue 0...10V, Auto-Detect, N.O./N.C., teach-in, plug M12 5-pin, IP67
<(>&<)> IP69K

IO-Link COM2, min. cycle time 2.7 ms, SIO mode supported"
.

Sensopart FT 55-RLAP-5-PNSIL-L5 Distance sensor with time-of-flight measurement, 0,1...5m, laser,
analogue 4...20mA, Auto-Detect, N.O./N.C, teach-in, plug M12 5-pin, IP67
<(>&<)> IP69K

IO-Link COM2, min. cycle time 2.7 ms, SIO mode supported"
.

Sensopart FT 55-RLAP2-2PNSL-L5 Distance sensor with time of flight measurement,
measurement output via IO-Link, 0.1...5m, laser, 2xAuto-Detect,
N.O./N.C., teach-in, plug M12 5-pin, IP67 <(>&<)> IP69K

IO-Link COM2, min. cycle time 2.7 ms, SIO mode supported
.

Sensopart FT 50 RLA-100-L8 Laser distance sensor
70-170 mm, 2 outputs
PNP, N.O., 4...20 mA.

Sensopart FT 50 RLA-100-S1L8 Distance sensor, 70 to 170 mm, Resolution
0,1% f.v. of meas. range, PNP, RS485
2 Outputs
4...20mA.

Sensopart FT 50 RLA 220 PL5 Distance sensor, 80 to 300mm, Resolution 0,1% f.v. of
meas. range, 1 x PNP, N.C./N.O. 4 to 20 mA,
M12 5-pin cennector.

Sensopart FT 50 RLA 70-PL5 Distance sensor, 30 to 100mm, Resolution 0,1% f.v. of
meas. range, 1 x PNP, N.C./N.O. 4 to 20 mA,
M12 5-pin cennector.

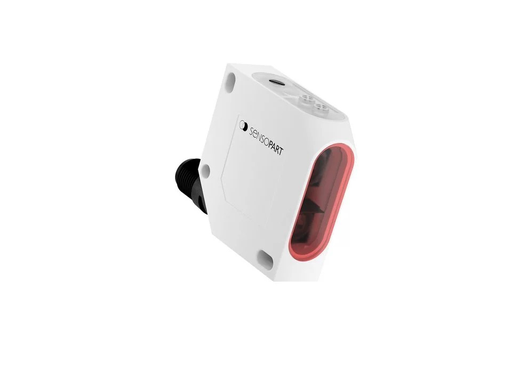

Sensopart FT 50 RLA 70-S1L8 Laser distance sensor
30-100 mm, 2 outputs
PNP, N.O.,4...20mA
Software:
www.sensopart.de - Downloads.

Sensopart FT 50 RLA 70 L8 Laser distance sensor
30-100 mm, 2 outputs,
PNP, N.O., 4...20mA.

Sensopart FT 50 RLA 220-S1L8 Distance sensor, 80 to 300 mm, Resolution
0,1% f.v. of meas. range, PNP,N.O. RS485
Software:
www.sensopart.de - Downloads.

Sensopart FT 50 RLA 220 L8 Laser distance sensor
80-300 mm, 2 outputs,
PNP,N.O.,4...20 mA.

Sensopart FT 50 RLA-20-S-L4S Analogue sensor, F50, laser, red light,
40-60mm, 40Hz, IP67,plug M12 4 pins,7µm.

Sensopart FT 50 RLA-20-S-K5 Analogue sensor, F50, red light,
SN 40-60mm, 40Hz, IP67, cable, 7µm.

Sensopart FT 50 RLA-20-F-L4S FT 50 RLA-20-F-L4S
Lasertaster mit
Analogue sensor, F50, red light, 40µm,
40-60mm, 400Hz, IP67, M12-plug 4 pins.
