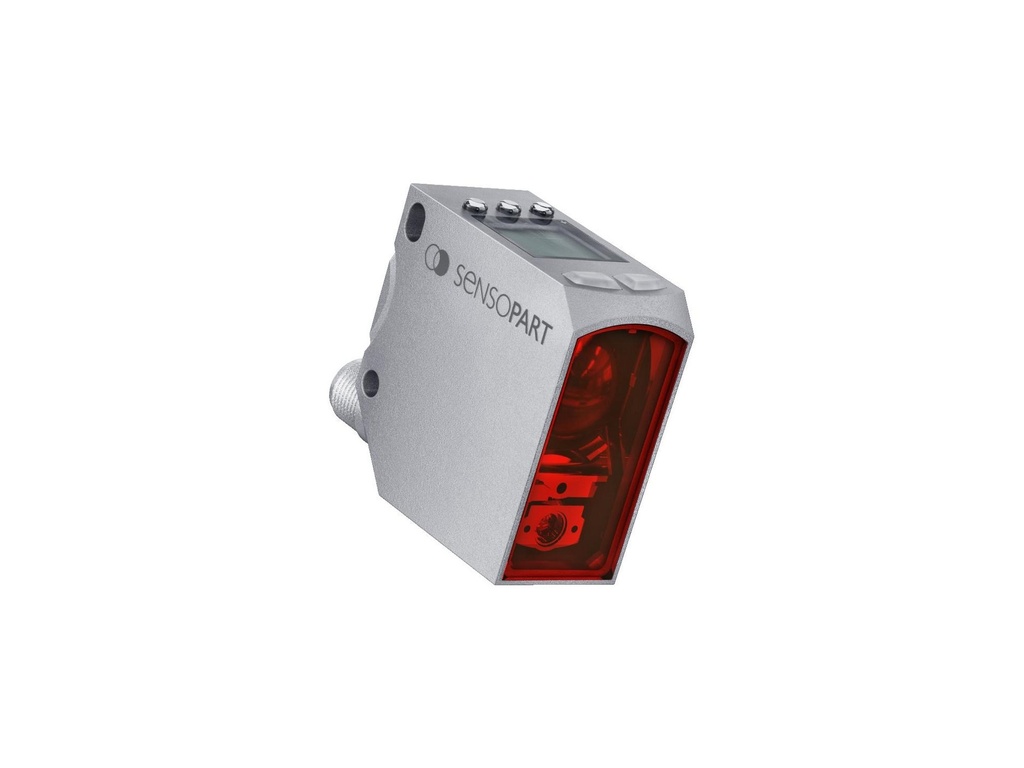

SENSOPART FT 55-RL2AM-800-PNSUIDL-L5M

SensoPart FT 55-RL2AM-800-PNSUIDL-L5M — Laser distance sensor, working distance 200…1000 mm, 2xQ, QA 4…20mA / 0.1...10V, IO-Link, laser class 2, Autodetect (PNP/NPN). Genuine product, supplied and supported by ZTEC.

907.95 € 907.95 €
kr 6,787.03
(Tax excluded)
Contact Us
Documents
SENSOPART FT 55-RL2AM-800-PNSUIDL-L5M - Brochure.pdf SENSOPART FT 55-RL2AM-800-PNSUIDL-L5M - CAD.zip SENSOPART FT 55-RL2AM-800-PNSUIDL-L5M - Datasheet 2.pdf SENSOPART FT 55-RL2AM-800-PNSUIDL-L5M - Datasheet.pdf SENSOPART FT 55-RL2AM-800-PNSUIDL-L5M - IODD.zip
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 55-RL2AM-800-PNSUIDL-L5M

An optical distance sensor for accurate, non-contact distance and position measurement

Order code
FT 55-RL2AM-800-PNSUIDL-L5M
Order number
624-41009
SensoPart FT 55-RL2AM-800-PNSUIDL-L5M
Repeatability
0.02 ... 0.2 mm, 5 ... 90 %, ruhendes Objekt, siehe Grafik
Resolution
QA, 14 bit
Output
Auto-detect/PNP/NPN/Push-Pull
Protection
IP 67, IP 69

SensoPart FT 55-RL2AM-800-PNSUIDL-L5M is an optical distance sensor for accurate, non-contact distance and position measurement, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Working range up to 1 m enables a wide variety of applications where precision is required at great distances
✓Precise measurements thanks to repeatability down to ≤ 40 µm
✓Switching hysteresis of 2 mm enables small-part detection even at great distances of up to 1000 mm
✓Laser class 2 for measurements on very dark objects

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationLogisticsPackagingMachinery
Object and presence detection
Object and presence detection
Edge and fill-level monitoring
Edge and fill-level monitoring
Counting and positioning
Counting and positioning on the line
Label and mark detection
Label and mark detection

Specifications

Optical data
Explanation of resolutionQA, 14 bit
Explanation of linearityTypical, 5...90%; homogeneous, stationary object
Explanation of repeatability0.02 ... 0.2 mm, 5 ... 90 %, ruhendes Objekt, siehe Grafik
Light sourceLaser
Laser class2 (IEC 60825-1)
Light colorRed
Explanation of switching hysteresis5...90%; homogeneous, stationary object
Functions
DisplayLCD, with background illumination
Display, LED yellowStatusanzeige Q1/Q2
Default settingsAnalogausgang QA: 4 ... 20 mA, Messbereichsgrenzen Schaltausgang Q1: 450 mm, N.O. Schaltausgang Q2: 750 mm, N.O.
Switching output QAuto-detect/PNP/NPN/Push-Pull
Measuring range adjustmentVia display and IO-Link
IO-Link
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
Electrical data
Reverse polarity protectionYes
Short circuit protectionYes
Analog output QA2 ... 10 mA / 4 ... 20 mA; 0 ... 10 V / 2 ... 10 V
Protection classIP 67, IP 69
Output functionN.O./N.C.
Number of outputs2
Averaging times1 ms, 10 ms, 100 ms, 1000 ms
Measured value refresh timeResponse time QA + averaging rate
Explanation of thermal responseQA < 0,02%/K, digital < 0,01%/K
Explanation of switching frequencySchaltfrequenz im IO-Link Betrieb geringer
- Number of pins5
Measured value outputAnalog (voltage), Analog (current), IO Link
Explanation of switching output QAuto-detect: Automatic selection of PNP or NPN by the sensor
Mechanical data
Front panel materialPMMA
Housing materialZN-Druckguss, mattchrom
Display materialPMMA
Explanation of protection classmit angeschlossenem IP 67 / IP 69 Stecker
Vibration and shock resistanceEN IEC 60947-5-2
Connection namePlug, M12x1, 5-pin, IO-Link
Housing typeCuboidal
Display, LED greenOperating voltage indicator
- ThreadM12x1
Additional specifications
Setting optionsTeach-in Q1, Q2, QA, Q as switching window or switching point Average value setting on QA Auto-Detect / NPN / PNP / Push-Pull Smart functions (on and off delay, counter, pulse, frequency)
