FT 55-BH-NS-L4
Description
Long scanning distance of 1.2 m
BlueLight technology with precisely adjustable background suppression – reliable operation even with highly reflective and glossy backgrounds
Precise scanning distance adjustment by means of potentiometer • Reliable detection of highly transparent or strongly light absorbing objects
Reliable detection even with angles of up to 90°

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 3
Working distance max. [mm]: 1200
Velocity [Hz] 600
Adjustment: Potentiometer
Light source: LED, blue
Switching output :NPN
Temperature range [°C] :-20 ... +60
Connection type: Plug M12, 4-pin
Enclosure rating : IP69K, IP 67
You need to login to see your price! 0.0 EUR
FT 25-BH-PNSL-KL4
Description
Miniature sensor with BlueLight technology and precisely adjustable background suppression
Reliable switching with strongly light absorbing and shiny objects
Reliable operation even with highly reflective backgrounds thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Sensor setting via teach-in, control input and IO-Link
Robust glass-fibre-reinforced plastic housings
Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression

SeriesF25 (34 x 20 x 12 mm)

Working distance min. [mm] 0

Working distance max. [mm] 200

Velocity [Hz]700

Interface IO-Link

Adjustment Teach-in

Light source LED, blue

Switching output PNP/NPN (auto detect)

Temperature range [°C] -20 ... +60

Connection type Pigtail, plug M12, 4-wire, 150 mm

Enclosure rating IP69K
You need to login to see your price! 0.0 EUR

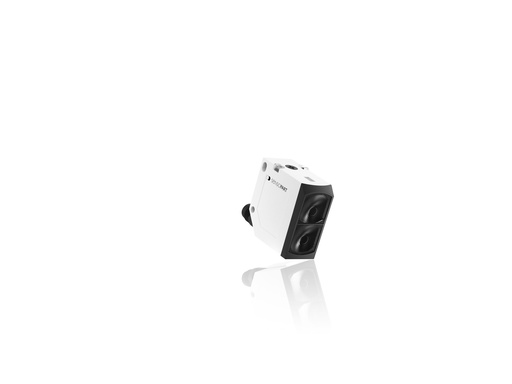

FT 55-BH-PS-L4
Description
Long scanning distance of 1.2 m
BlueLight technology with precisely adjustable background suppression – reliable operation even with highly reflective and glossy backgrounds
Precise scanning distance adjustment by means of potentiometer • Reliable detection of highly transparent or strongly lightabsorbing objects
Reliable detection even with angles of up to 90°

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 3
Working distance max. [mm]: 1200
Velocity [Hz] 600
Adjustment: Potentiometer
Light source: LED, blue
Switching output :PNP
Temperature range [°C] :-20 ... +60
Connection type: Plug M12, 4-pin
Enclosure rating : IP69K, IP 67
You need to login to see your price! 0.0 EUR
FT 50 BH-PAL4
Description
Precisely adjustable background suppression
Simple scanning distance adjustment thanks to indicator scale
Plug connector rotatable

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Spot size [mm]: 5 x 5
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 30
Working distance max. [mm]: 300
Velocity [Hz]: 1000
Adjustment: Potentiometer
Light source: LED, blue
Switching output: PNP/NPN, antivalent
Temperature range [°C]: -20 ... +60
Connection type: Plug M12, 4-pin
Enclosure rating: IP 67
You need to login to see your price! 0.0 EUR
FT 25-BH-PNSL-KM4
Description
Miniature sensor with BlueLight technology and precisely adjustable background suppression
Reliable switching with strongly light absorbing and shiny objects
Reliable operation even with highly reflective backgrounds thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Sensor setting via teach-in, control input and IO-Link
Robust glass-fibre-reinforced plastic housings


Product data
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series
F25 (34 x 20 x 12 mm)
Working distance min. [mm]
0
Working distance max. [mm]
200
Velocity [Hz]
700
Interface
IO-Link
Adjustment
Teach-in
Light source
LED, blue
Switching output
PNP/NPN (auto detect)
Temperature range [°C]
-20 ... +60
Connection type
Pigtail, plug M8, 4-wire, 150 mm
Enclosure rating
IP69K
You need to login to see your price! 0.0 EUR
FT 25-BH-PNSL-M4
Description
Miniature sensor with BlueLight technology and precisely adjustable background suppression
Reliable switching with strongly light absorbing and shiny objects
Reliable operation even with highly reflective backgrounds thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Sensor setting via teach-in, control input and IO-Link
Robust glass-fibre-reinforced plastic housings

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 200
Velocity [Hz]: 700
Interface: IO-Link
Adjustment: Teach-in
Light source: LED, blue
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -20 ... +60
Connection type: Plug M8, 4-pin
Enclosure rating: IP69K
You need to login to see your price! 0.0 EUR
FT 25-BH-PNSL-M4M
Description
Miniature sensor with BlueLight technology and precisely adjustable background suppression
Reliable switching with strongly light absorbing and shiny objects
Reliable operation even with highly reflective backgrounds thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Sensor setting via teach-in, control input and IO-Link
Robust glass-fibre-reinforced plastic housings
Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression

Series: F25 (34 x 20 x 12 mm)

Working distance min. [mm]: 0

Working distance max. [mm]: 200

Velocity [Hz]: 700

Interface: IO-Link

Adjustment: Teach-in

Light source: LED, blue

Switching output: PNP/NPN (auto detect)

Temperature range [°C]: -20 ... +60

Connection type: Metal plug M8, 4-pin

Enclosure rating: IP69K
You need to login to see your price! 0.0 EUR
FT 25-BF2-PS-K4
Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +40
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP69
You need to login to see your price! 0.0 EUR
FT 25-BF2-NS-M4
Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series
F25 (34 x 20 x 12 mm)
Working distance min. [mm]
0
Working distance max. [mm]
80
Velocity [Hz]
1000
Adjustment
Control input
Light source
LED, blue
Switching output
NPN
Temperature range [°C]
-20 ... +40
Connection type
Plug M8, 4-pin
Enclosure rating
IP69
You need to login to see your price! 0.0 EUR

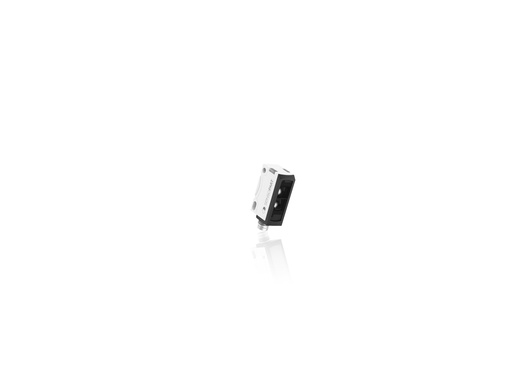

FT 25-BF2-PS-M4
Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +40
Connection type: Plug M8, 4-pin
Enclosure rating: IP69
You need to login to see your price! 0.0 EUR
FT 10-BF3-NS-KM3
Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67
You need to login to see your price! 0.0 EUR
FT 10-BF3-NS-KM4
Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting
Product data
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
2
Working distance max. [mm]
50
Velocity [Hz]
1000
Adjustment
Control input
Light source
LED, blue
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
You need to login to see your price! 0.0 EUR
FT 10-BF3-NS-K4
Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP 67
You need to login to see your price! 0.0 EUR
FT 10-BF3-PS-KM3
Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67
You need to login to see your price! 0.0 EUR
FT 10-BF3-PS-KM4
2 … 50 mm, blue light, bgs, fixed focus, PNP, pigtail 200 mm with connector M8 4-pin
You need to login to see your price! 0.0 EUR
FT 10-BF3-PS-K4
2 … 50 mm, blue light, bgs, fixed focus, PNP, cable 2 m 4-wire
You need to login to see your price! 0.0 EUR
FT 10-BF2-NS-KM3
Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data: Sensor principle
Photoelectric diffuse sensor with Background Suppression

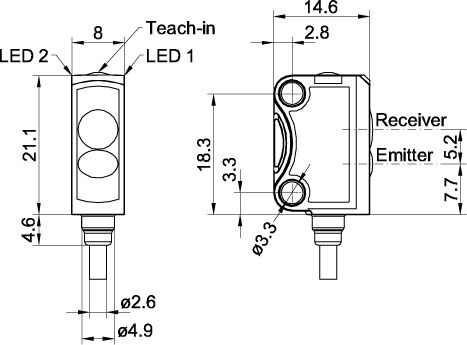

Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz] :1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67
You need to login to see your price! 0.0 EUR
FT 10-BF2-NS-KM4
Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting
Product data
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
2
Working distance max. [mm]
30
Velocity [Hz]
1000
Adjustment
Control input
Light source
LED, blue
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
You need to login to see your price! 0.0 EUR
FT 10-BF2-NS-K4
2 … 30 mm, blue light, bgs, fixed focus, NPN, cable 2 m 4-wire
You need to login to see your price! 0.0 EUR
FT 10-BF2-PS-KM3
2 … 30 mm, blue light, bgs, fixed focus, PNP, pigtail 200 mm with connector M8 3-pin
You need to login to see your price! 0.0 EUR
